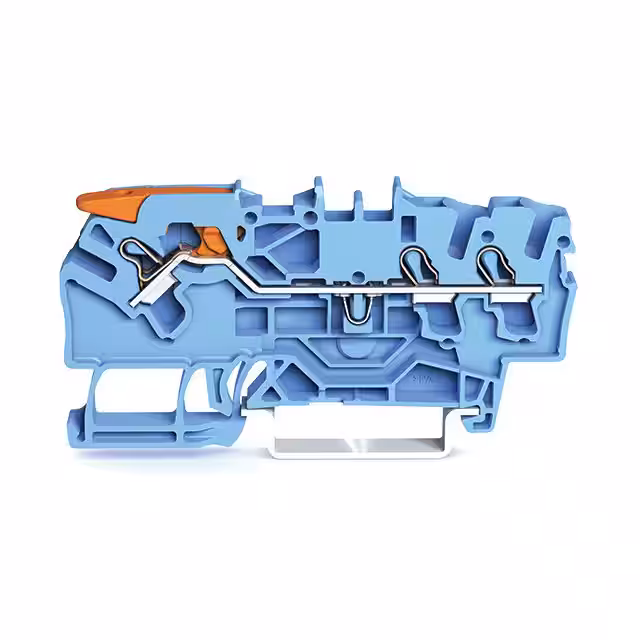

2102-1304

Manufacturer :

WAGO

Product Category :

Din Rail, Channel

Terminal - Width :

5.2mm

Manufacturer :

Wago

Cross section (flexible) (min.) :

0.25mm²

Connectable conductor cross section multi-wired :

0.25 - 2.5

Product Status :

Active

RoHS :

yes

Type :

Standard Block

Rated current In :

24

Packaging :

Box

Terminal and Terminal Block Type :

MODULAR TERMINAL BLOCK

Nominal current - rounded value :

24A

Connectable conductor cross section fine-strand with cable end sleeve :

0.75 - 2.5

Industrial packaging :

yes

Number of Positions :

3

Features :

+ lever,+ CAGE CLAMP®

Connection :

Push-in connector

Fuse Type :

-

Current - IEC :

30 A

Cross section (inflexible) (max.) :

4mm²

Rated Current :

24A

EU RoHS :

Compliant

AWG max. :

12

Dim :

(W x H) 5.20 mm x 32.90 mm

Cross section (inflexible) (min.) :

0.25mm²

Termination Method :

Clamp

Automotive :

No

Approvals :

CSA, cURus

Connectable conductor cross section fine-strand without cable end sleeve :

0.25 - 4

Inflammability class of insulation material according to with UL94 :

V0

Current - UL :

20 A

Voltage Rating :

800 V

PPAP :

No

Material - Insulation :

Polyamide (PA66), Nylon 6/6

Reach Compliance Code :

Compliant

Content :

50pc(s)

Manufacturer part # :

2102-1304

Rated Voltage :

800V

Stripping Length :

10mm ~ 12mm

Voltage - IEC :

800V

Depth :

32.9

Wire Gauge or Range - AWG :

12-22 AWG

AWG (min.) :

22

Package :

Box

Number of Levels :

Single

Series :

2102

Wire Gauge or Range - mm² :

0.25-4mm²

Number of Circuits :

1

ECCN (US) :

EAR99

Connectable conductor cross section solid-core :

0.75 - 4

Length :

72.2

Maximum Operating Temperature :

+105°C

Standards Met :

CCA, CSA, cURus, Ex, IECEx, KEMA/KEUR

Cross section (flexible) (max.) :

2.50mm²

Pins per row :

3

Width :

5.20mm

Minimum Operating Temperature :

-35°C

Clamp width :

5.20mm

Height :

32.90mm

Material Flammability Rating :

UL94 V-0

Voltage - UL :

600V

Mounting Type :

DIN Rail

No. of rows :

1

Termination Style :

Push In, Spring

Color :

Blue

Pitch :

5.2mm

Nominal current :

24A

Disconnect Type :

-

Stripping length (max.) :

12mm

Current Rating :

30A

Min. stripping length :

10mm
