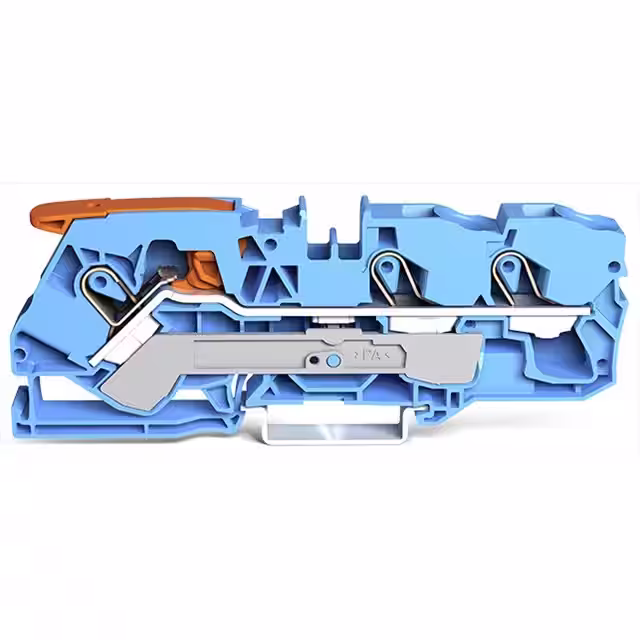

2110-1304

Manufacturer :

WAGO

Product Category :

Din Rail, Channel

Connectable conductor cross section fine-strand with cable end sleeve :

4 - 10

Material Flammability Rating :

UL94 V-0

Width :

10

Termination Style :

Push In, Spring

Material - Insulation :

Polyamide (PA66), Nylon 6/6

Rated Current :

57A

Rated current In :

57

Wire Gauge or Range - mm² :

0.5-16mm²

Fuse Type :

-

Series :

TOPJOB®S

Wire Gauge or Range - AWG :

6-20 AWG

Number of Levels :

1

Color :

Blue

Approvals :

UL;CSA

Disconnect Type :

-

Connectable conductor cross section multi-wired :

0.5 - 16

Depth :

36.9

Length :

110.4

Terminal - Width :

10.0mm

Height :

110.4

Type :

Feedthrough Block

Inflammability class of insulation material according to with UL94 :

V0

Current - IEC :

74 A

Connectable conductor cross section solid-core :

4 - 16

Rated Voltage :

800V

RoHS :

No

Current - UL :

65 A

Manufacturer :

Wago

Connectable conductor cross section fine-strand without cable end sleeve :

0.5 - 16

Mounting Type :

DIN Rail

Number of Positions :

3

Package :

Box

Voltage - UL :

600V

Features :

-

Product Status :

Active

Voltage - IEC :

800V

Stripping Length :

17mm ~ 19mm
