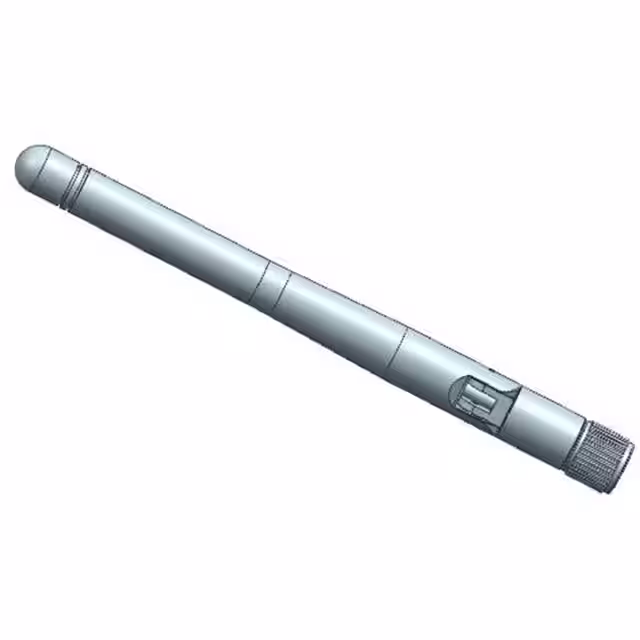

2144141001

Manufacturer :

Molex

Product Category :

RF Antennas

Minimum Operating Temperature :

-40°C

Product :

Outdoor Antennas

Impedance :

50 Ohms

Antenna Type :

Whip, Tilt

Series :

214414

Mounting Type :

Direct

Frequency Group :

SHF (f > 4GHz)

Subcategory :

Antennas

Weight :

7.715g

Width :

9.35mm

Package :

Tray

Features :

-

Style :

Tilt/Swivel

Height (Max) :

4.268 (108.40mm)

Termination Style :

Connector

Frequency Range :

5.9 GHz

Connector Type :

SMA

Mounting Style :

Panel Mount

Length :

108.40mm

Ingress Protection :

-

Type :

External Antenna

Component Type :

External Antenna

Product Status :

Active

Number of Bands :

1

Return Loss :

-10dB

VSWR :

-

Termination :

SMA Male

Maximum Operating Temperature :

+85°C

Applications :

DSRC, ISM

Product Type :

ISM Antennas - ISM, MICS, UHF, VHF, UWB

Antenna Connector Type :

SMA Male

Frequency (Center/Band) :

5.9GHz

Base Product Number :

214414

Gain :

3.9dBi

Cable Type :

-

RF Family/Standard :

General ISM

Center Frequency :

5850 MHz

Polarization :

Linear
