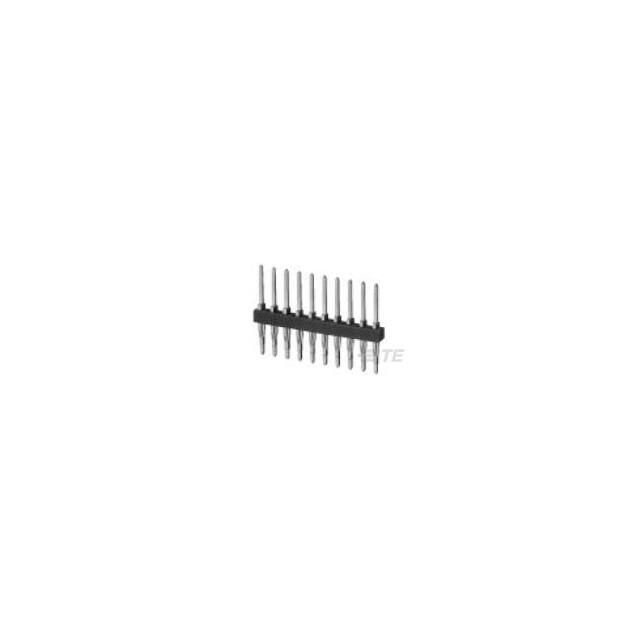

215267-8

Manufacturer :

TE Connectivity

Product Category :

Unclassified

MIL Conformance :

No

Package :

Box

Housing Color :

Green

Number Of PCB Rows :

1

Reference Standard :

UL, CSA

Series :

*

Body Depth :

0.114 inch

Dielectric Withstanding Voltage :

750VAC V

Gender :

HDR

Housing Material :

Polyester

Pitch (mm) :

2.54(mm)

Current Rating (Max) :

3/Contact(A)

Product Status :

Active

ECCN Code :

EAR99

Operating Temp Range :

-65C to 105C

Number of Contacts :

8(POS)

Reach Compliance Code :

Compliant

Terminal Length :

0.146 inch

Body Breadth :

0.1 inch

Product Depth (mm) :

2.54(mm)

IEC Conformance :

No

Brand Name :

AMP

Plating Thickness :

30u inch

Body/Shell Style :

Receptacle

Type :

Unshrouded Header

Contact Plating :

Gold Over Nickel

Packaging :

Box

Pbfree Code :

yes

Connector Type :

BOARD CONNECTOR

Mounting Type :

BOARD

HTS Code :

8536.69.40.40

Terminal Pitch :

2.54 mm

Rated Current (Signal) :

3 A

DIN Conformance :

No

Contact Gender :

Male

Contact Material :

Phosphor Bronze

Insulator Color :

Green

Contact Pattern :

RECTANGULAR

Contact Finish Termination :

Tin

Mixed Contacts :

No

Number of Contact Rows :

1

Reliability :

COMMERCIAL

Option :

GENERAL PURPOSE

Insulation Resistance :

5000000000 Ω

Body Orientation :

Straight

JESD-609 Code :

e3

Mounting Style :

Straight

Termination Method :

Press Fit

Mating Contact Pitch :

0.1 inch

Total Number of Contacts :

8

Termination Type :

Press Fit

Filter Feature :

No

PCB Contact Pattern :

RECTANGULAR

Additional Feature :

ACTION PIN

Product Height (mm) :

9.9(mm)

Contact Style :

SQ PIN-SKT
