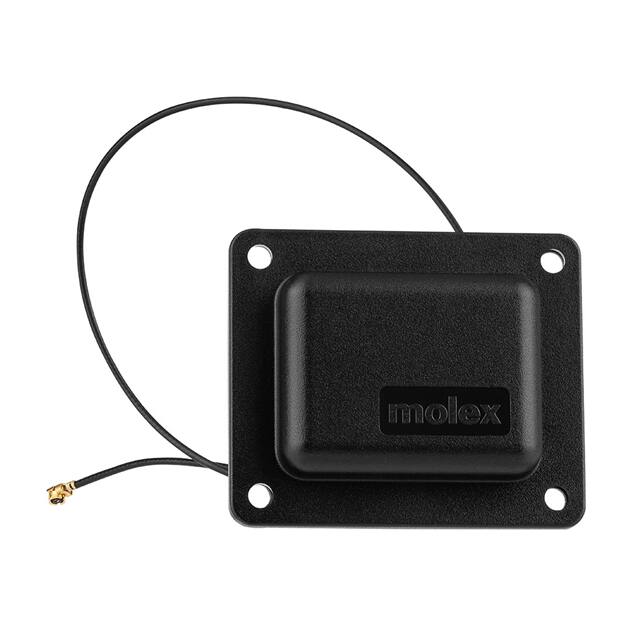

2158680001
Or copy the link below:
- Mfr.Part #
- 2158680001
- Manufacturer
- Molex
- Package / Case
- Datasheet
- Download
- Description
- MOLEX ON-METAL WIFI EXTERNAL ANT
- Stock
- 689
- In Stock ：
- 689
Request A Quote(RFQ)
- * Fullname:
- * Company:
- * E-Mail:
- Phone:
- Comment:
- * Quantity:
- Manufacturer :
- Molex
- Product Category :
- RF Antennas
- VSWR :
- -
- Antenna Type :
- Module
- Base Product Number :
- 215868
- Features :
- Cable - 300mm
- Product Status :
- Active
- Product Type :
- IoT Antennas - LPWAN, LoRaWAN, Sigfox, NB-IoT
- Antenna Mounting :
- Adhesive / Screw
- Return Loss :
- -6dB
- Input Impedance :
- 50Ohm
- Applications :
- Bluetooth, DSRC, Wi-Fi, Zigbee?
- Product :
- Outdoor Antennas
- Cable Type :
- 300 mm Coax
- Frequency (Center/Band) :
- 2.45GHz, 5.5GHz
- Manufacturer :
- Molex
- Type :
- Passive Antenna
- Input Power :
- 2W
- Number of Bands :
- 2
- Brand :
- Molex
- Center Frequency :
- 2450 MHz, 5500 MHz
- Height (Max) :
- 0.335" (8.50mm)
- Package :
- Bag
- Length :
- 44 mm
- Ingress Protection :
- -
- RF Family/Standard :
- 802.15.4, Bluetooth, WiFi
- Series :
- 215868
- Product Category :
- Antennas
- Frequency Group :
- UHF (2GHz ~ 3GHz), SHF (f > 4GHz)
- Subcategory :
- Antennas
- Polarization :
- Linear
- Cable Length :
- 300mm
- Frequency Range :
- 2.4GHz ~ 2.5GHz, 5.15GHz ~ 5.85GHz
- Minimum Operating Temperature :
- - 40 C
- Mounting Style :
- Screw Mount
- Termination :
- U.FL (UMCC), IPEX MHF1
- Width :
- 37 mm
- Maximum Operating Temperature :
- + 85 C
- Gain :
- 2dBi, 5.5dBi
- Style :
- Square
- Termination Style :
- Connector
- Antenna Connector Type :
- U.FL / I-PEX MHF
- Mounting Type :
- Adhesive
- Datasheets
- 2158680001
2 Bands Module UHF (2GHz ~ 3GHz), SHF (f > 4GHz) Adhesive U.FL (UMCC), IPEX MHF1 2.45GHz, 5.5GHz 2dBi, 5.5dBi 0.335" (8.50mm) Bluetooth, DSRC, Wi-Fi, Zigbee?
2158680001 Overview
As a type of Passive Antenna, the RF Antenna is used in various applications.Adhesive makes it suitable for general RF Antennas.It is a Antenna RF from the 215868 series.
2158680001 Features
Type of Passive Antenna
With Adhesive
215868 series
2158680001 Applications
There are a lot of Molex
2158680001 RF Antennas applications.
- Lightning strikes
- Solar flares
- Static electricity
- Cosmic noise
- Generators
- Lightings
- Rectifiers
- Inverters
- Satellites
- Transmission
