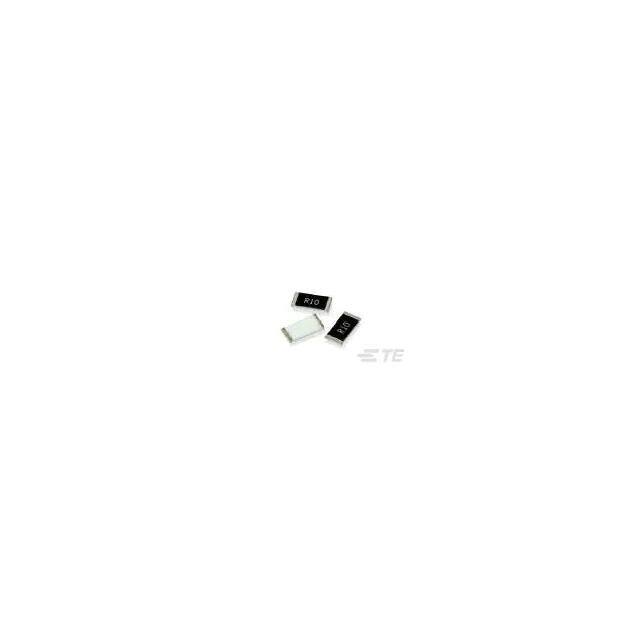

2176049-1

Manufacturer :

TE Connectivity AMP Connectors

Product Category :

Unclassified

Series :

*

Number of Terminations :

2

Features :

-

Manufacturer Lifecycle Status :

ACTIVE (Last Updated: 3 days ago)

Anti-Surge :

No

Height :

0.32 mm

Application :

Current Sense

Lead Spacing (nom) :

Not Required(mm)

Type :

Current Sense Resistors

Resistance Tolerance :

± 1%

RoHS :

Details

Max Operating Temperature :

155 °C

Tolerance (+ or -) :

1%

ELV :

Compliant

Min Operating Temperature :

-55 °C

Length :

1 mm

Case Style :

Epoxy

Resistance :

51 mOhms

Temperature Range @ Derated Power :

70 TO 155

Case Code (Metric) :

1005

Product Height (mm) :

0.32(mm)

Mounting Style :

PCB Mount

Product Length (mm) :

1(mm)

Operating Temp Range :

-55C to 155C

Termination Style :

SMD/SMT

Package :

Tape and Reel (TR)

Power Rating(s) :

0.125 (1/8)(W)

Package Type :

SMD

Width :

0.5 mm

Tolerance :

1 %

Failure Rate :

Not Required

Mount :

Surface Mount

Anti-Sulfurated :

No

Case Code (Imperial) :

0402

Current Sensing :

yes

Minimum Operating Temperature :

- 55 C

Product Diameter (mm) :

Not Required(mm)

Product Depth (mm) :

0.5(mm)

Package / Case :

0402

Number of Terminals :

2

Military Standard :

Not Required

Case Size :

0402

Temperature Coefficient :

400 PPM / C

Product Length :

1 mm

Lifecycle Status :

Production (Last Updated: 3 days ago)

Max Power Dissipation :

125 mW

Product :

Thick Film Resistors SMD

Composition :

Thick Film

Product Width :

0.5 mm

Packaging :

Cut Tape

Termination :

Solder

Power Rating :

125 mW (1/8 W)

Construction :

RECTANGULAR

Product Status :

Active

Number of Resistors :

1

Maximum Operating Temperature :

+ 155 C
