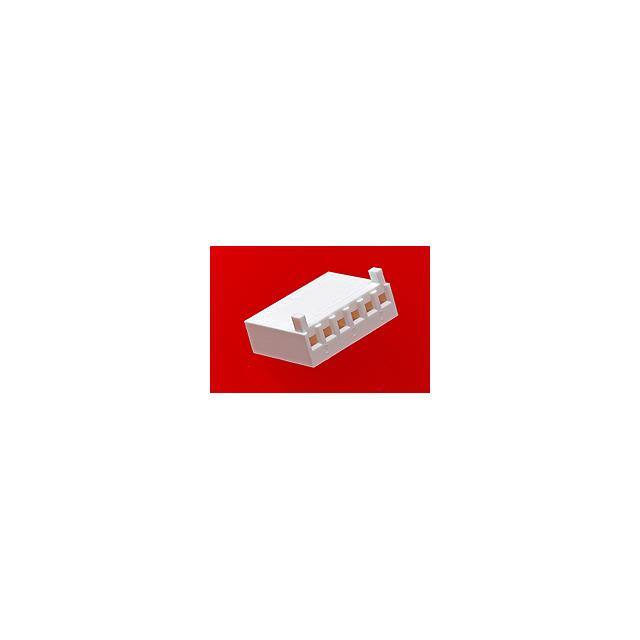

22-01-2135

Manufacturer :

Molex

Product Category :

Rectangular Connector Housings

Contact Resistance :

10 MΩ

Termination Type :

Crimp

Dielectric Withstanding Voltage :

1500VAC V

Contact Style :

SQ PIN-SKT

Number of Rows :

1 Row

Option :

GENERAL PURPOSE

Withdrawl Force-Min :

.556 N

Manufacturer :

Molex

Brand :

Molex

DIN Conformance :

No

IEC Conformance :

No

Factory Lead Time :

4 Weeks

Reach Compliance Code :

Compliant

Product :

Wire Housings

Mating Information :

MULTIPLE MATING PARTS AVAILABLE

Contact Pattern :

RECTANGULAR

Total Number of Contacts :

13

Mating Contact Pitch :

0.1 inch

Number of Positions :

13 Position

Flammability Rating :

UL 94 V-0

Contact Material :

NOT SPECIFIED

RoHS :

Details

Subcategory :

Headers and Wire Housings

Contact Gender :

Socket (Female)

Termination Style :

Crimp

UL Flammability Code :

94V-0

Mounting Style :

Cable Mount / Free Hanging

Mounting Type :

CABLE

Reference Standard :

UL, CSA

Product Category :

Headers and Wire Housings

Series :

6471

Product Status :

Active

Body Depth :

0.5 inch

MIL Conformance :

No

Reliability :

COMMERCIAL

Pbfree Code :

yes

Mixed Contacts :

No

Type :

Receptacle Housing

Housing Material :

Nylon

Pitch :

2.54 mm

Insulation Resistance :

1000000000 Ω

Filter Feature :

No

Connector Type :

BOARD CONNECTOR

Product Type :

Headers and Wire Housings

Tradename :

KK

Housing Color :

Natural

Package :

Box

Insertion Force-Max :

1.946 N

Polarization Key :

POLARIZED RIB(S)

Body Breadth :

0.19 inch

Application :

Signal, Wire-to-Board

Body/Shell Style :

PLUG

Packaging :

Bulk

Additional Feature :

KK, POLARISED

Mounting Option 1 :

LOCKING

Insulator Color :

White
