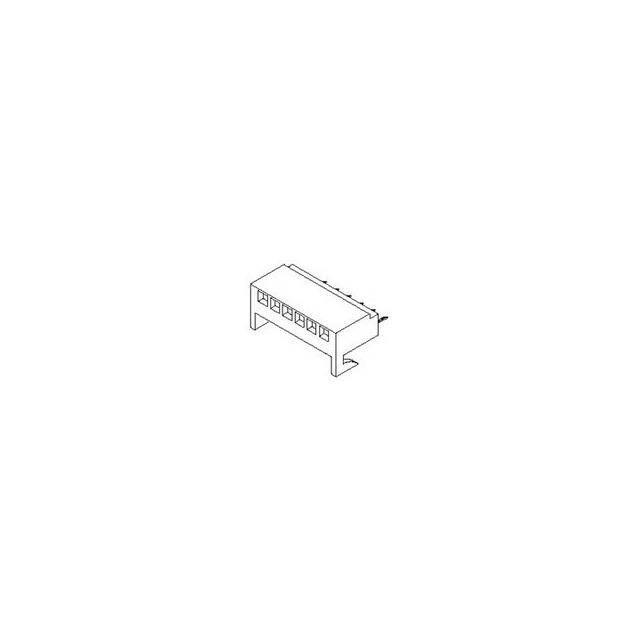

22-02-2035

Manufacturer :

Molex

Product Category :

Headers, Receptacles, Female Sockets

Flammability :

94V-0

Product :

Headers

Product Status :

Active

HTS Code :

8536.69.40.40

Terminal Length :

0.133 inch

Additional Feature :

Top Entry

Mating Information :

MULTIPLE MATING PARTS AVAILABLE

Current Rating :

2.5 A

Brand :

Molex

Mating Contact Pitch :

0.1 inch

Housing Color :

White

Maximum Operating Temperature :

+ 80 C

Rated Current (Signal) :

2.5 A

Termination Style :

Solder Pin

Mounting Angle :

Straight

Body Breadth :

0.318 inch

Durability :

25 Cycles

Option :

GENERAL PURPOSE

Operating Temp Range :

-40C to 80C

Contact Resistance Max :

20(mohm)

Series :

4455

Contact Type :

-

Product Category :

Headers and Wire Housings

Pitch :

2.54 mm

Reliability :

COMMERCIAL

Termination Post Length :

3.35 mm

Type :

Socket Strip

UL Flammability Code :

94V-0

Terminal Pitch :

2.54 mm

Body/Shell Style :

PLUG

Connector Type :

BOARD CONNECTOR

Number of Positions :

3 Position

Product Type :

Headers and Wire Housings

Application :

Board-to-Board

Gender :

RCP

Board Mounting Option :

PCB EDGE LOCKING HOOK

Product Height (mm) :

7.9(mm)

Flammability Rating :

UL 94 V-0

Orientation :

Vertical

Voltage Rating :

500 V

MIL Conformance :

No

Product Depth (mm) :

7.7(mm)

Dielectric Withstanding Voltage :

250VAC V

Body Orientation :

Straight

Subcategory :

Headers and Wire Housings

Mixed Contacts :

No

Filter Feature :

No

Accessory Type :

-

Withdrawl Force-Min :

.834 N

Termination Method :

Solder

Contact Gender :

Socket (Female)

Packaging :

Tray

Contact Plating :

TIN OVER NICKEL

Mounting Style :

Through Hole

Number of Rows :

1 Row

Insertion Force-Max :

2.502 N

RoHS :

Details

Contact Material :

Brass

Reach Compliance Code :

Compliant

Contact Pattern :

RECTANGULAR

Pbfree Code :

yes

Total Number of Contacts :

3

Contact Resistance :

20 mΩ

Contact Style :

BELLOWED TYPE

Number of Contact Rows :

1

Body Depth :

0.31 inch

Minimum Operating Temperature :

- 40 C

Housing Material :

Nylon

Tradename :

KK

Reference Standard :

UL, CSA

Insulation Resistance :

500000000000 Ω

Pitch (mm) :

2.54(mm)

DIN Conformance :

No

Mounting Type :

BOARD

Number Of PCB Rows :

1

Current Rating (Max) :

2.5/Contact(A)

IEC Conformance :

No

Number of Contacts :

3(POS)

Product Length (mm) :

7.52(mm)

Package :

Tray

Voltage Rating Max :

500V

Manufacturer :

Molex

Termination Type :

Solder

PCB Contact Pattern :

RECTANGULAR

ECCN Code :

EAR99
