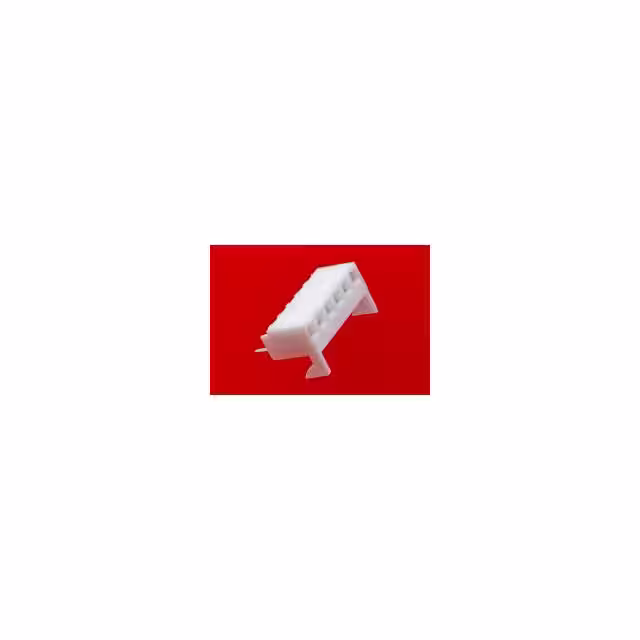

22-02-2245

Manufacturer :

Molex

Product Category :

Headers, Receptacles, Female Sockets

Terminal Pitch :

2.54 mm

Total Number of Contacts :

24

Board Mounting Option :

PCB EDGE LOCKING HOOK

Manufacturer :

Molex

Mixed Contacts :

No

Series :

*

Reference Standard :

UL, CSA

Package :

Box

Connector Type :

BOARD CONNECTOR

IEC Conformance :

No

Termination :

Through Hole

Contact Resistance :

20 mΩ

Orientation :

Vertical

Termination Type :

Solder

Withdrawl Force-Min :

.834 N

DIN Conformance :

No

Number of Circuits :

24

PCB Contact Pattern :

RECTANGULAR

Contact Material :

Brass

Contact Style :

BELLOWED TYPE

Filter Feature :

No

Body Depth :

0.31 inch

Number of Contacts :

24

HTS Code :

8536.69.40.40

Mounting Type :

BOARD

Body/Shell Style :

PLUG

Option :

GENERAL PURPOSE

Contact Plating :

Tin

Pitch :

2.54 mm

Rated Current (Signal) :

2.5 A

Insulation Resistance :

500000000000 Ω

Plating :

Tin

Housing Material :

Nylon

Dielectric Withstanding Voltage :

250VAC V

Durability :

25 Cycles

Number Of PCB Rows :

1

Current Rating :

2.5 A

Number of Rows :

1

Terminal Length :

0.133 inch

Mating Information :

MULTIPLE MATING PARTS AVAILABLE

UL Flammability Code :

94V-0

Contact Pattern :

RECTANGULAR

Contact Gender :

FEMALE

Reliability :

COMMERCIAL

Pbfree Code :

yes

Number of Positions :

24

Voltage Rating :

250 V

MIL Conformance :

No

Body Breadth :

0.318 inch

Country of Origin :

PR

Additional Feature :

Top Entry

Product Status :

Active

Manufacturer Lifecycle Status :

Obsolete (Last Updated: 2 years ago)

Halogen Free :

Low Halogen

Subcategory :

Headers and Edge Type Connectors

ECCN Code :

EAR99

Mounting Style :

Straight

RoHS :

Compliant

Mating Contact Pitch :

0.1 inch

Reach Compliance Code :

Compliant

Lifecycle Status :

Obsolete (Last Updated: 2 years ago)

Insertion Force-Max :

2.502 N

Glow Wire Compliant :

Non-Compliant
