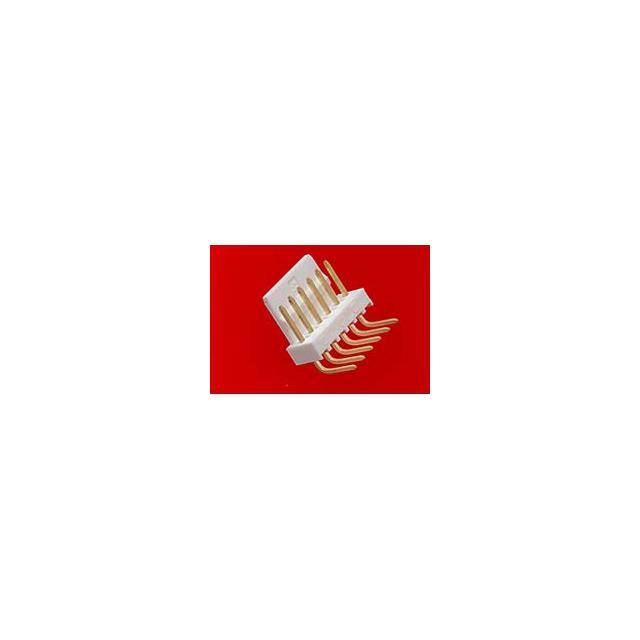

22-05-7088

Manufacturer :

Molex

Product Category :

Headers, Male Pins

Maximum Operating Temperature :

+ 105 C

Number of Pins :

8

Termination Method :

Solder

Schedule B :

8536694040/8536694040/8536694040/8536694040/8536694040/8536694040/8536694040/8536694040/8536694040/8536694040/8536694040/8536694040/8536694040/8536694040/8536694040/8536694040/8536694040/8536694040/8536694040/8536694040/8536694040/8536694040/8536694040/85

Type :

Molex MOL Power and Signal Sol.

DIN Conformance :

No

Product Length :

20.32 mm

Voltage Rating (AC) :

250 V

Terminal Pitch :

2.54 mm

Brand :

Molex

Lifecycle Status :

Production (Last Updated: 2 years ago)

Number of Positions :

8

Number of Lines :

1

Voltage Rating (DC) :

250 V

Contact Resistance :

10 MΩ

Body Orientation :

RIGHT ANGLE

Product :

Headers

Current Rating :

3 A

Max Operating Temperature :

105 °C

Connector contact surface :

Tin

Reference Standard :

UL, CSA

Insulator Color :

White

Contact Plating :

Tin

Housing Color :

Natural

UL Flammability Code :

94V-0

Contact Material :

Brass

Plating :

Tin

Termination Style :

Solder Pin

Mounting Type :

BOARD

Material :

Nylon

Accessory Type :

-

Packaging :

Bulk

CS :

2.54mm

Base/Housing Material :

Nylon 66

Termination Type :

Solder

Total Number of Contacts :

8

Contact Style :

SQ PIN-SKT

Min Operating Temperature :

0 °C

Body Depth :

0.46 inch

Number Of PCB Rows :

1

Pitch :

2.5400 mm

Manufacturer part # :

22057088

ECCN Code :

EAR99

Option :

GENERAL PURPOSE

Nominal current - rounded value :

4A

Orientation :

RIGHT ANGLE

Contact Finish Termination :

Tin (Sn)

Pbfree Code :

yes

Board contact surface :

Tin

Number of Rows :

1

Product Category :

Headers and Wire Housings

Operating Temperature :

-40 to 105 °C

Plating Thickness :

5u inch

Terminal Length :

0.26 inch

Length :

20.32 mm

Product Status :

Active

Withdrawl Force-Min :

.556 N

Hole Diameter :

1.02 mm

JESD-609 Code :

e3

Case material :

Nylon (NL)

Radiation Hardening :

No

Tradename :

KK

Number of Poles :

8

Mounting Option 1 :

POLARIZED LCK

Filter Feature :

No

Glow Wire Compliant :

Non-Compliant

Reliability :

COMMERCIAL

Reach Compliance Code :

Compliant

Series :

7395

Country of Origin :

MX

Nominal voltage :

500V

Minimum Operating Temperature :

- 40 C

Contact Type :

-

MIL Conformance :

No

HTS Code :

8536.69.40.40

Connection :

Soldering

Package :

Box

Gender :

Header

Insulation Resistance :

5000000000 Ω

Flammability Rating :

UL94 V-0

Halogen Free :

Low Halogen

Manufacturer Lifecycle Status :

ACTIVE (Last Updated: 2 years ago)

Mounting Style :

Through Hole

Rated Current (Signal) :

2.5 A

Mounting :

Through Hole

Contact Pattern :

RECTANGULAR

RoHS :

Compliant

Dielectric Withstanding Voltage :

1500VAC V

Mixed Contacts :

No

Number of Contacts :

8

Mating Information :

MULTIPLE MATING PARTS AVAILABLE

IEC Conformance :

No

Product Type :

Headers and Wire Housings

Application :

Signal, Wire-to-Board

Working Voltage :

250 V

Voltage Rating :

250 V

Features :

+ locking mechanism

Number of Circuits :

8

PCB Contact Pattern :

RECTANGULAR

Housing Material :

Nylon

Body Breadth :

0.25 inch

Content :

1pc(s)

Factory Lead Time :

10 Weeks

Contact Gender :

Male

Total number of pins :

8

Color :

White

Mounting Angle :

RIGHT ANGLE

Lead Pitch :

2.54 mm

Termination :

Solder

Subcategory :

Headers and Wire Housings

Nominal current :

4A

Body/Shell Style :

Receptacle

REACH SVHC :

Unknown

No. of rows :

1

Connector Type :

BOARD CONNECTOR

Manufacturer :

Molex

Mount :

Through Hole

Mating Contact Pitch :

0.1 inch

Packaging type :

Bag

Depth :

14.42 mm

Insertion Force-Max :

1.946 N
