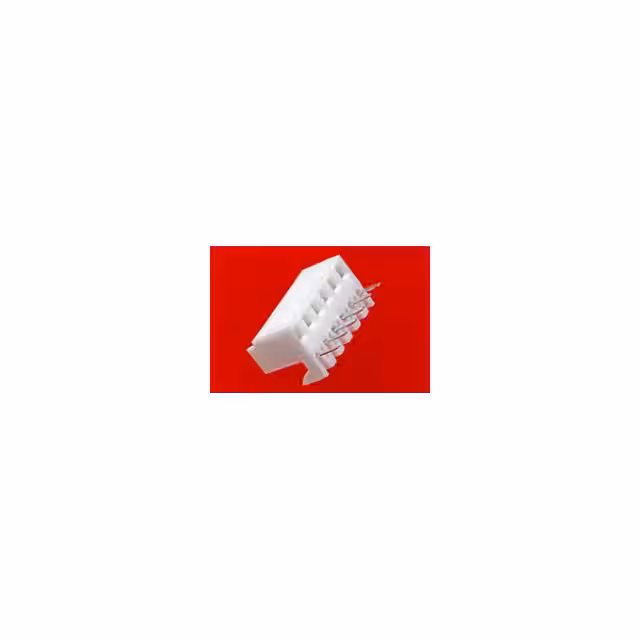

22-14-2084

Manufacturer :

Molex

Product Category :

Headers, Receptacles, Female Sockets

Filter Feature :

No

Body Breadth :

0.305 inch

Contact Gender :

Socket (Female)

Mounting Angle :

Bottom Entry

Option :

GENERAL PURPOSE

Product Status :

Active

Body Depth :

0.311 inch

Contact Pattern :

RECTANGULAR

MIL Conformance :

No

Base/Housing Material :

Nylon

Tradename :

KK

Product Length :

20.22 mm

Contact Resistance :

10 MΩ

Pitch :

2.5400 mm

Termination Type :

Solder

Number of Positions :

8 Position

Reach Compliance Code :

Compliant

Rated Current (Signal) :

2.5 A

Manufacturer :

Molex

Terminal Pitch :

2.54 mm

Reference Standard :

UL, CSA

Body/Shell Style :

PLUG

Brand :

Molex

Number of Rows :

1 Row

Termination Style :

Solder Pin

Insulation Resistance :

1000000000 Ω

Flammability Rating :

UL 94 V-0

Gender :

Receptacle

Connector Type :

BOARD CONNECTOR

Product Category :

Headers and Wire Housings

JESD-609 Code :

e3

Reliability :

COMMERCIAL

Contact Style :

SQ PIN-SKT

Mating Contact Pitch :

0.1 inch

Body Orientation :

Straight

Row Spacing :

-

UL Flammability Code :

94V-0

Contact Type :

-

Plating Thickness :

100u inch

Pbfree Code :

yes

Number Of PCB Rows :

1

Product Type :

Headers and Wire Housings

Mounting Style :

Through Hole

Mounting Type :

BOARD

PCB Contact Pattern :

RECTANGULAR

Contact Plating :

Tin

Voltage Rating :

500 V

Terminal Length :

0.132 inch

Durability :

25 Cycles

Orientation :

Bottom Entry

Flammability :

94V-0

Mating Information :

MULTIPLE MATING PARTS AVAILABLE

Subcategory :

Headers and Wire Housings

Current Rating :

2.5 A

Housing Material :

Nylon

Accessory Type :

-

Mounting :

Through Hole

HTS Code :

8536.69.40.40

Insertion Force-Max :

1.946 N

DIN Conformance :

No

Polarization Key :

POLARIZED HOUSING

Application :

Board-to-Board

Packaging :

Tray

Contact Finish Termination :

Bright Tin (Sn)

Mounting Option 1 :

LOCKING

Termination Method :

Solder

ECCN Code :

EAR99

Contact Material :

Brass

Additional Feature :

Bottom Entry

RoHS :

Details

Mixed Contacts :

No

Insulator Color :

White

Total Number of Contacts :

8

Package :

Tray

IEC Conformance :

No

Type :

Socket Assembly

Series :

4455

Withdrawl Force-Min :

.556 N

Housing Color :

White

Product :

Headers

Operating Temperature :

0 to 75 °C
