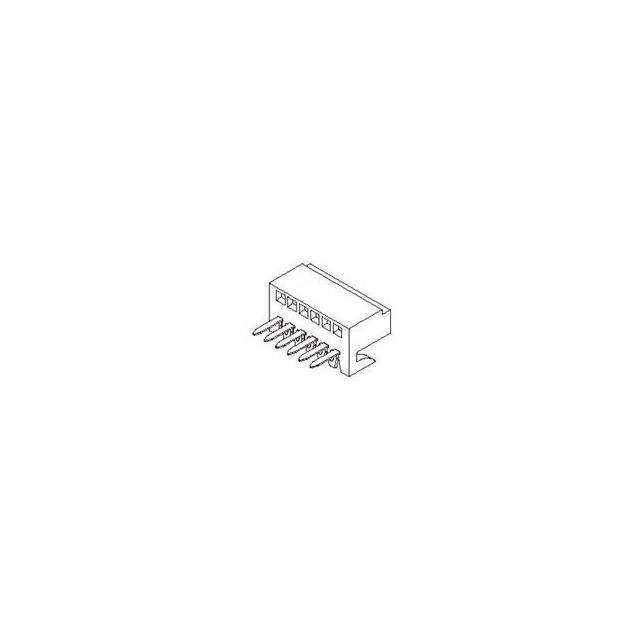

22-14-2144

Manufacturer :

Molex

Product Category :

Headers, Receptacles, Female Sockets

Mounting :

Through Hole

PCB Contact Pattern :

RECTANGULAR

Number of Rows :

1

Pitch :

2.5400 mm

Mating Information :

MULTIPLE MATING PARTS AVAILABLE

Termination Method :

Solder

Terminal Pitch :

2.54 mm

Product Length :

35.46 mm

Body Breadth :

0.318 inch

Application :

Board-to-Board

Flammability Rating :

UL 94 V-0

Minimum Operating Temperature :

- 40 C

ECCN Code :

EAR99

Rated Current (Signal) :

2.5 A

Plating :

Tin

RoHS :

Compliant

Body/Shell Style :

PLUG

Terminal Length :

0.133 inch

Withdrawl Force-Min :

.834 N

Flammability :

94V-0

Dielectric Withstanding Voltage :

250VAC V

Type :

Molex MOL Power and Signal Sol.

Case material :

Nylon (NL)

Board Mounting Option :

PCB EDGE LOCKING HOOK

Tradename :

KK

Housing Material :

Nylon

Total Number of Contacts :

14

Contact Material :

Brass

Filter Feature :

No

Nominal current - rounded value :

2.5A

Base/Housing Material :

Nylon

Number of Contacts :

14

Nominal voltage :

500V

Maximum Operating Temperature :

+ 80 C

Package :

Tray

Number of Positions :

14

Lifecycle Status :

Production (Last Updated: 2 years ago)

Voltage Rating (DC) :

250 V

Content :

1pc(s)

Manufacturer :

Molex

Reliability :

COMMERCIAL

Country of Origin :

US

Contact Pattern :

RECTANGULAR

IEC Conformance :

No

Total number of pins :

14

Mount :

Through Hole

Mating Contact Pitch :

0.1 inch

Packaging type :

Tray

Option :

GENERAL PURPOSE

Contact Plating :

Tin

Termination :

Solder

HTS Code :

8536.69.40.40

Connector Type :

BOARD CONNECTOR

Number Of PCB Rows :

1

CS :

2.54mm

Factory Lead Time :

20 Weeks

Insulation Resistance :

500000000000 Ω

Product Type :

Headers and Wire Housings

Durability :

25 Cycles

Termination Type :

Solder

Contact Type :

-

Series :

4455

Reference Standard :

UL, CSA

Nominal current :

2.5A

Housing Color :

White

Lead Length :

3.35 mm

UL Flammability Code :

94V-0

Voltage Rating :

250 V

MIL Conformance :

No

Accessory Type :

-

Additional Feature :

Bottom Entry

Manufacturer Lifecycle Status :

ACTIVE (Last Updated: 2 years ago)

Mounting Angle :

Bottom Entry

Radiation Hardening :

No

Operating Temperature :

0 to 75 °C

Number of Circuits :

14

Packaging :

Tray

Termination Style :

Solder Pin

Mounting Style :

Through Hole

Contact Gender :

FEMALE

Body Orientation :

Straight

Insertion Force-Max :

2.502 N

Current Rating :

2.5 A

No. of rows :

1

Pbfree Code :

yes

Halogen Free :

Low Halogen

Board contact surface :

Tin

Max Operating Temperature :

75 °C

Mounting Type :

BOARD

Product Category :

Headers and Wire Housings

Contact Resistance :

20 mΩ

Glow Wire Compliant :

Non-Compliant

Subcategory :

Headers and Wire Housings

DIN Conformance :

No

Connector contact surface :

Tin

Body Depth :

0.31 inch

Reach Compliance Code :

Compliant

Product :

Headers

Manufacturer part # :

22142144

Brand :

Molex

Contact Style :

BELLOWED TYPE

Min Operating Temperature :

0 °C

Orientation :

Bottom Entry

Termination Post Length :

3.35 mm

Mixed Contacts :

No

Gender :

Receptacle

Connection :

Soldering

Product Status :

Active
