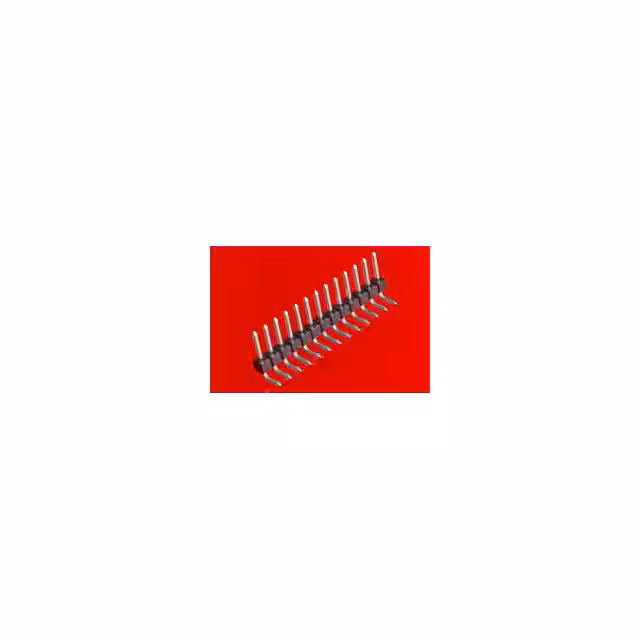

22-28-6080

Manufacturer :

Molex

Product Category :

Headers, Male Pins

Terminal Pitch :

2.54 mm

Connector Type :

BOARD CONNECTOR

Termination Method :

Solder

Option :

GENERAL PURPOSE

Insulator Color :

Black

Min Operating Temperature :

0 °C

Reach Compliance Code :

Compliant

Flammability :

94V-0

Max Operating Temperature :

75 °C

Country of Origin :

US

Contact Gender :

Pin (Male)

Glow Wire Compliant :

Non-Compliant

Contact Plating :

TIN OVER NICKEL

Row Spacing :

-

Product Height (mm) :

3.61(mm)

Housing Material :

Nylon

Product Status :

Active

Contact Style :

SQ PIN-SKT

Flammability Rating :

UL 94 V-0

Insertion Force-Max :

4.8928 N

Withdrawl Force-Min :

.556 N

Body Orientation :

RIGHT ANGLE

Termination :

Solder

Mixed Contacts :

No

Contact Resistance :

20 mΩ

Contact Material :

Brass

Current Rating (Max) :

4/Contact(A)

Mounting Option 1 :

LOCKING

Lead Length :

3.05 mm

Total Number of Contacts :

8

Lifecycle Status :

Production (Last Updated: 2 years ago)

Insulation Resistance :

1000000000 Ω

Product Category :

Headers and Wire Housings

Series :

42376

Subcategory :

Headers and Wire Housings

Mount :

Through Hole

Number of Rows :

1 Row

Type :

Unshrouded Header

Mounting Angle :

RIGHT ANGLE

Mounting Type :

BOARD

Brand :

Molex

Contact Type :

-

Gender :

HDR

Mounting Style :

Through Hole

Product :

Headers

Pitch (mm) :

2.54(mm)

Body Breadth :

0.098 inch

Max Voltage Rating (DC) :

250.25 kV

Body/Shell Style :

Receptacle

Reference Standard :

UL

Contact Pattern :

RECTANGULAR

ELV :

Compliant

Manufacturer :

Molex

Durability :

25 Cycles

Packaging :

Bag

Termination Type :

Solder

UL Flammability Code :

94V-0

Mating Post Length :

9.17 mm

MIL Conformance :

No

Terminal Length :

0.12 inch

Filter Feature :

No

Application :

Board-to-Board

RoHS :

Details

Tradename :

KK

Termination Style :

Solder Pin

Current Rating :

4 A

DIN Conformance :

No

Additional Feature :

KK

Number of Positions :

8 Position

Plating Thickness :

100u inch

Orientation :

RIGHT ANGLE

Product Type :

Headers and Wire Housings

Pbfree Code :

yes

Voltage Rating :

500 V

Operating Temp Range :

-40C to 80C

Mating Information :

MULTIPLE MATING PARTS AVAILABLE

Product Depth (mm) :

10.41(mm)

ECCN Code :

EAR99

Number of Contacts :

8(POS)

Number of Contact Rows :

1

Body Depth :

0.09 inch

Termination Post Length :

3.05 mm

Product Length (mm) :

20.32(mm)

Accessory Type :

-

Number Of PCB Rows :

1

PCB Contact Pattern :

RECTANGULAR

Reliability :

COMMERCIAL

IEC Conformance :

No

HTS Code :

8536.69.40.40

Pitch :

2.54 mm

Housing Color :

Black

Manufacturer Lifecycle Status :

ACTIVE (Last Updated: 2 years ago)

Number of Circuits :

8

Plating :

Tin

Package :

Box

Voltage Rating Max :

500V

Mating Contact Pitch :

0.1 inch

Material :

Brass

Contact Resistance Max :

20(mohm)
