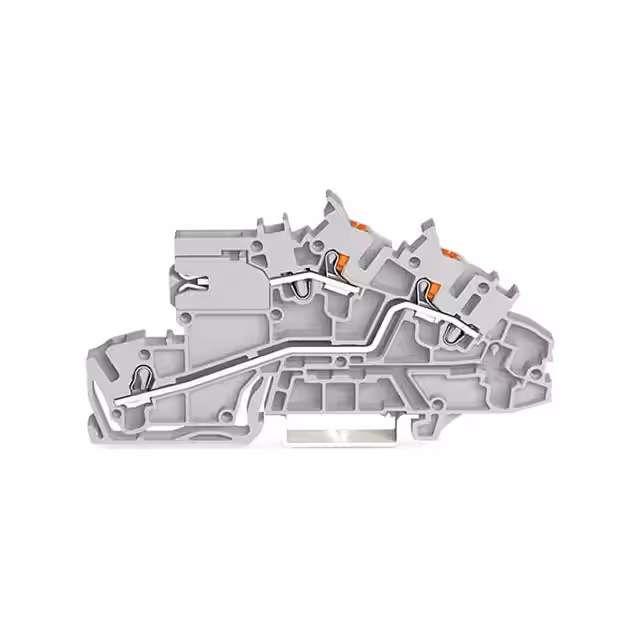

2203-7559

Manufacturer :

WAGO

Product Category :

Din Rail, Channel

Terminal - Width :

5.2mm

Package :

Bulk

Inflammability class of insulation material according to with UL94 :

V0

Type :

Feed Through

Fuse Type :

-

Features :

-

Number of Levels :

3

Material Flammability Rating :

UL94 V-0

Connectable conductor cross section fine-strand with cable end sleeve :

0.75 - 2.5

Connectable conductor cross section fine-strand without cable end sleeve :

0.25 - 4

Voltage - UL :

-

Connectable conductor cross section solid-core :

0.75 - 4

Voltage - IEC :

400V

Color :

Gray

Stripping Length :

10mm ~ 12mm

Rated current In :

32

Termination Style :

Push In, Spring

Material - Insulation :

Polyamide (PA66), Nylon 6/6

Wire Gauge or Range - AWG :

12-22 AWG

Disconnect Type :

-

Wire Gauge or Range - mm² :

0.25-4mm²

Series :

TOPJOB®S

Product Status :

Active

Connectable conductor cross section multi-wired :

0.25 - 2.5

Number of Positions :

3

Current - IEC :

29 A
