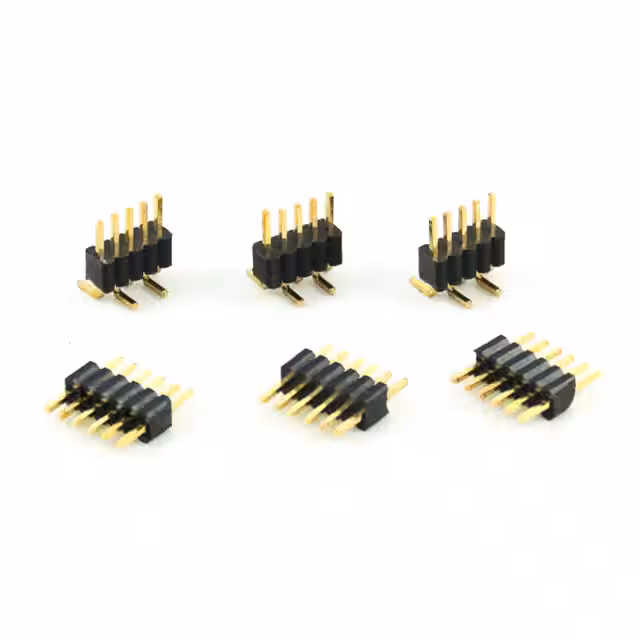

2212-1X16G00DB-3.2B
Or copy the link below:
- Mfr.Part #
- 2212-1X16G00DB-3.2B
- Manufacturer
- Oupiin
- Package / Case
- Datasheet
- Download
- Description
- PIN HEADER, SINGLE ROW, 16 PIN,
- Stock
- 30,263
- In Stock ：
- 30,263
Request A Quote(RFQ)
- * Fullname:
- * Company:
- * E-Mail:
- Phone:
- Comment:
- * Quantity:
- Manufacturer :
- Oupiin
- Product Category :
- Headers, Male Pins
- Current Rating (Amps) :
- 1A
- Contact Finish - Mating :
- Gold
- Termination :
- Solder
- Connector Type :
- Header
- Contact Shape :
- Square
- Pitch - Mating :
- 0.050 (1.27mm)
- Voltage Rating :
- -
- Insulation Color :
- Black
- Package :
- Bulk
- Features :
- -
- Product Status :
- Active
- Base Product Number :
- 2212
- Material Flammability Rating :
- UL94 V-0
- Contact Type :
- Male Pin
- Contact Finish - Post :
- Gold
- Contact Finish Thickness - Post :
- Flash
- Insulation Material :
- Polyamide (PA6T), Nylon 6T
- Mated Stacking Heights :
- -
- Applications :
- -
- Contact Finish Thickness - Mating :
- Flash
- Ingress Protection :
- -
- Contact Length - Post :
- -
- Mounting Type :
- Surface Mount
- Number of Positions Loaded :
- All
- Style :
- Board to Board
- Contact Length - Mating :
- 0.126 (3.20mm)
- Row Spacing - Mating :
- -
- Number of Positions :
- 16
- Overall Contact Length :
- -
- Insulation Height :
- 0.098 (2.50mm)
- Fastening Type :
- Push-Pull
- Number of Rows :
- 1
- Operating Temperature :
- -40°C ~ 105°C
- Series :
- 2212
- Shrouding :
- Unshrouded
- Contact Material :
- Brass
- Datasheets
- 2212-1X16G00DB-3.2B
2212 Series 1-Row Header Solder Brass Surface Mount Gold Polyamide (PA6T), Nylon 6T 16-Position Board to Board 0.098 (2.50mm) Height
2212-1X16G00DB-3.2B Overview
The product is packaged in Header.This device is mounted in the Surface Mount position.There is a product in the 2212 Series.The device could be used for the following application: -.As a result, the device runs at -40°C ~ 105°C Operating Temperature.
2212-1X16G00DB-3.2B Features
2212 series
2212-1X16G00DB-3.2B Applications
There are a lot of Oupiin
2212-1X16G00DB-3.2B Rectangular Connectors applications.
- Embedded systems
- Datacom
- Communication
- Medical technology
- Military Technology
- Measuring & Control Technology
- Instrumentation
- Automotive Electronics
- Telecommunications
- Data Technology
