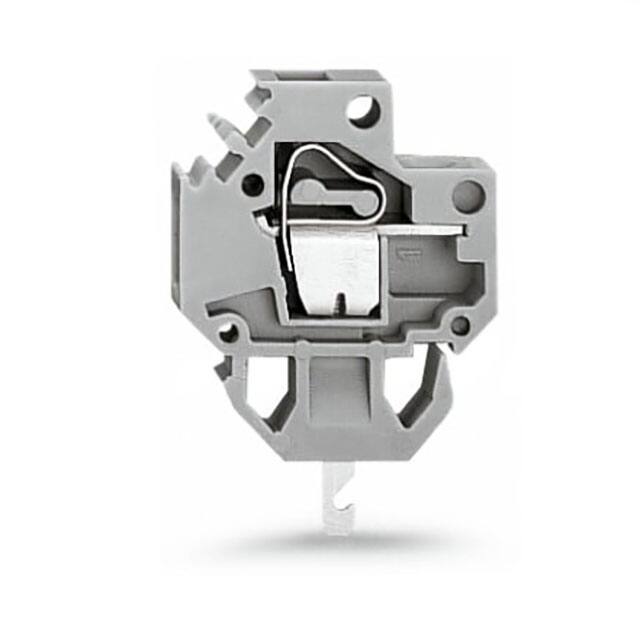

226-111

Manufacturer :

WAGO

Product Category :

Specialized

Number of Pins :

1

Current - UL :

6 A

Voltage - UL :

300 V

Stripping length (max.) :

10mm

Nominal current - rounded value :

20A

CS :

6mm

Cross section (inflexible) (min.) :

0.08mm²

Current Rating :

20 A

Housing Color :

Gray

Number of Levels :

1

Connection :

Spring-loaded terminal

Cross section (flexible) (max.) :

4.00mm²

Material - Insulation :

Polyamide (PA66), Nylon 6/6

RoHS :

yes

Length :

6.00mm

Cross section (flexible) (min.) :

0.08mm²

AWG (min.) :

28

Manufacturer part # :

226-111

Terminal - Width :

6.0mm

Voltage - IEC :

630 V

Width :

38.50mm

Flammability Rating :

UL94 V-0

Operating Temperature :

-

Wire protection :

yes

Height :

26.00mm

Number of Rows :

1

Current - IEC :

20 A

Pins per row :

1

Package :

Bag

Wire Gauge or Range - mm² :

0.08-2.5mm²

Cross section (inflexible) (max.) :

4.00mm²

Material Flammability Rating :

UL94 V-0

Contact Material :

Copper, Tin

Industrial packaging :

yes

Nominal voltage :

320V

Number of Circuits :

1

Approvals :

CSA, UL

Product Status :

Active

Type :

Feed Through

Nominal current :

20A

Features :

+ CAGE CLAMP®

Content :

200pc(s)

Actuation direction :

Parallel (to the PCB)

Min. stripping length :

6mm

Color :

Gray

Manufacturer :

Wago

Enclosure material :

Polyamide

Stripping Length :

9mm ~ 10mm

Termination Style :

Push In, Spring

Height (Max) :

0.866 (22.00mm)

Series :

226

Number of Positions :

1

AWG max. :

12

Mounting Type :

Feed-Through, Snap-In

Wire Gauge or Range - AWG :

12-28 AWG

No. of rows :

1
