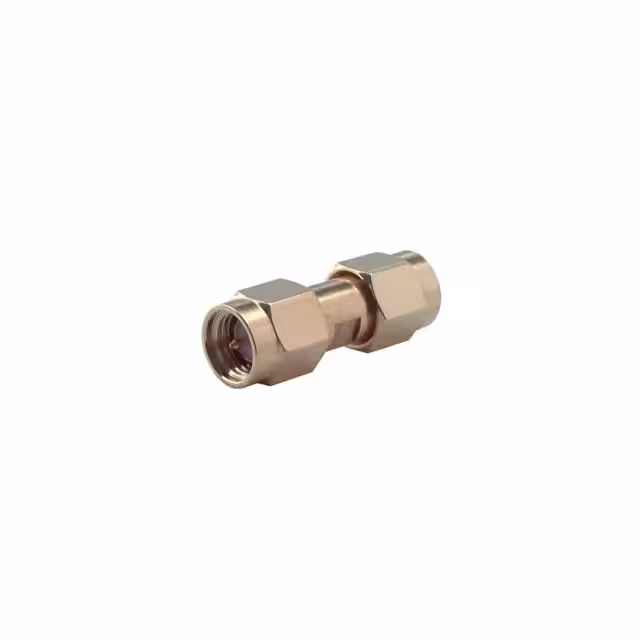

22640151

Manufacturer :

Huber+Suhner

Product Category :

Coaxial Connector (RF) Adapters

Mounting Feature :

-

Minimum Operating Temperature (°C) :

-65

Body Material :

BERYLLIUM COPPER

Impedance (Ohm) :

50

SVHC :

yes

Max. frequency :

18GHz

Contact Plating :

Gold Over Nickel

Mounting Type :

Free Hanging (In-Line)

Packaging :

Single

Adapter Series :

SMA to SMA

Style :

Straight

Frequency - Max :

18 GHz

Body Orientation :

Straight

Operating Temperature :

-65°C ~ 165°C

Polarity :

Standard

Product Depth (mm) :

8

Convert To (Adapter End) :

SMA Plug, Male Pin

Type B :

SMA Plug

Center Contact Material :

BERYLLIUM COPPER

Manufacturer part # :

22640151

Content :

1pc(s)

Mating Cycle (Cycles) :

500

Product Weight (g) :

5.8

Operating Frequency (Hz) :

0 to 18G

SVHC Exceeds Threshold :

yes

Series :

-

Ingress Protection :

-

ECCN (US) :

EAR99

Features :

-

Automotive :

No

Gender :

M/M

EU RoHS :

Compliant with Exemption

Center Contact Plating :

Gold

Base Product Number :

32_SMA-50

Body Finish :

Gold

Dielectric Material :

Perfluoroalkoxy (PFA), Polytetrafluoroethylene (PTFE)

Maximum Operating Temperature (°C) :

165

Product Status :

Active

Contact Gender :

M/M

Adapter Type :

Plug to Plug

Impedance :

50Ohm

Type :

SMA Adapter

Includes :

-

PPAP :

No

Package :

Bulk

Insertion Loss :

-

Center Gender :

Male to Male

Convert From (Adapter End) :

SMA Plug, Male Pin

Fastening Type :

Threaded, Threaded

Type A :

SMA Plug

Product Length (mm) :

23.7

Conversion Type :

Same Series

Mating Cycles :

500
