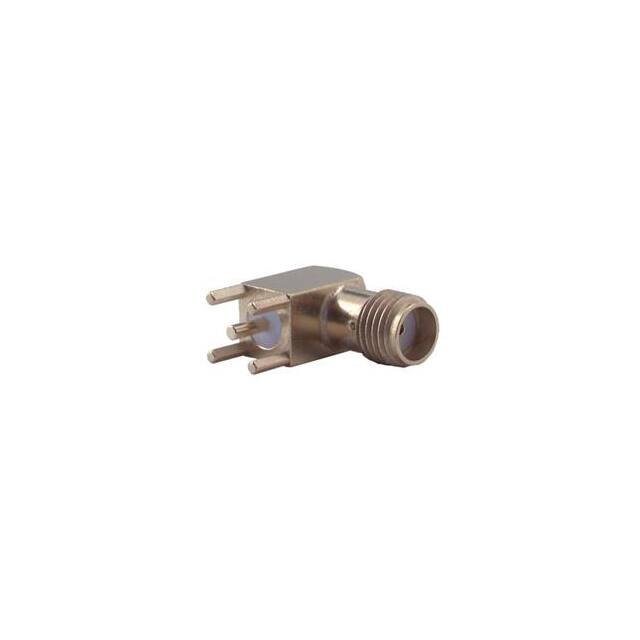

22652140

Manufacturer :

Huber+Suhner

Product Category :

Coaxial Connector (RF) Assemblies

Body/Shell Style :

JACK

Reliability :

COMMERCIAL

Durability :

500 Cycles

Includes :

-

Mounting Feature :

-

Termination Type :

Solder

Contact Style :

COAX

Body Finish :

Gold

Fastening Type :

Threaded

Ingress Protection :

-

Contact Termination :

Solder

Mounting Option 1 :

LOCKING

Body Breadth :

0.378 inch

Cable Group :

-

Manufacturer :

HUBER+SUHNER

Shield Termination :

Solder

Dielectric Material :

Perfluoroalkoxy (PFA), Polytetrafluoroethylene (PTFE)

Operating Temperature :

-65°C ~ 165°C

Connector Type :

Jack, Female Socket

Mounting Type :

Through Hole, Right Angle

Subcategory :

RF SMA/SSMA Connectors

Housing Color :

Gold

Connector Style :

SMA

Terminal Length :

0.157 inch

Insertion Loss :

-

Features :

-

Contact Gender :

FEMALE

Center Contact Plating :

Gold

Series :

-

Total Number of Contacts :

1

Center Contact Material :

BERYLLIUM COPPER

Shell Material :

Brass

Body Depth :

0.589 inch

Base Product Number :

85_SMA-50

Reach Compliance Code :

Compliant

Impedance :

50Ohm

Body Material :

Brass

Number of Ports :

1

Mounting Style :

RIGHT ANGLE

Frequency - Max :

18 GHz

Shell Finish :

Gold Over Nickel

Characteristic Impedance :

50 Ω

Polarization Key :

POLARIZED HOUSING

Product Status :

Active

Mating Cycles :

500

Package :

Bulk

Operating Frequency-Max :

18 GHz
