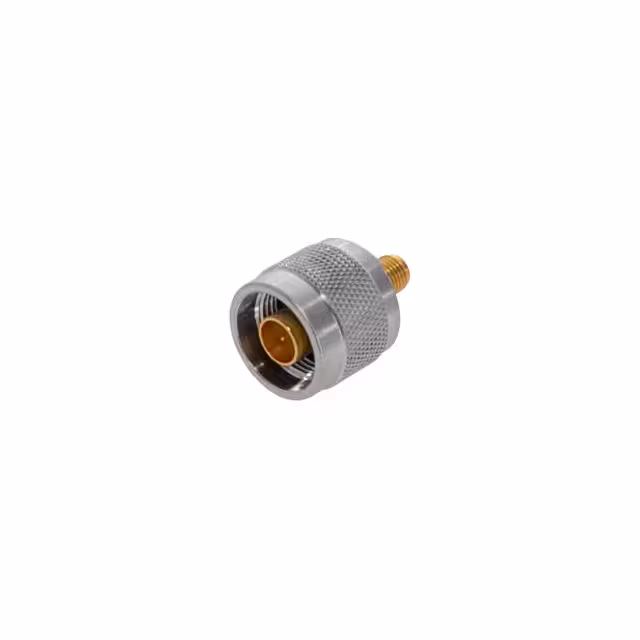

22652905

Manufacturer :

Huber+Suhner

Product Category :

Coaxial Connector (RF) Adapters

Series :

806

Package :

Retail Package

Features :

-

Convert From (Adapter End) :

SMA Jack, Female Socket

Convert To (Adapter End) :

N Plug, Male Pin

Insertion Loss :

-

Ingress Protection :

-

Base Product Number :

33_N-SMA

Body Finish :

White Bronze

Conversion Type :

Between Series

Product Status :

Active

Fastening Type :

Threaded

Mounting Type :

Panel Mount, Through Hole

Shell Material :

Stainless Steel

Body Material :

Beryllium Copper; Brass

Adapter Type :

Plug to Jack

Contact Finish - Mating :

Gold

Adapter Series :

SMA to N

Dielectric Material :

Perfluoroalkoxy (PFA), Polytetrafluoroethylene (PTFE)

Contact Material :

COPPER ALLOY

Shell Size - Insert :

20-28

Style :

Straight

Shell Finish :

Passivated

Frequency - Max :

18 GHz

Termination :

Solder

Center Contact Material :

BERYLLIUM COPPER

Operating Temperature :

-65°C ~ 175°C

Color :

Silver

Mounting Feature :

Flange

Mating Cycles :

500

Orientation :

C

Primary Material :

Metal

Connector Type :

Receptacle, Female Sockets

Center Contact Plating :

Gold

Center Gender :

Female to Male

Includes :

-

Impedance :

50Ohm
