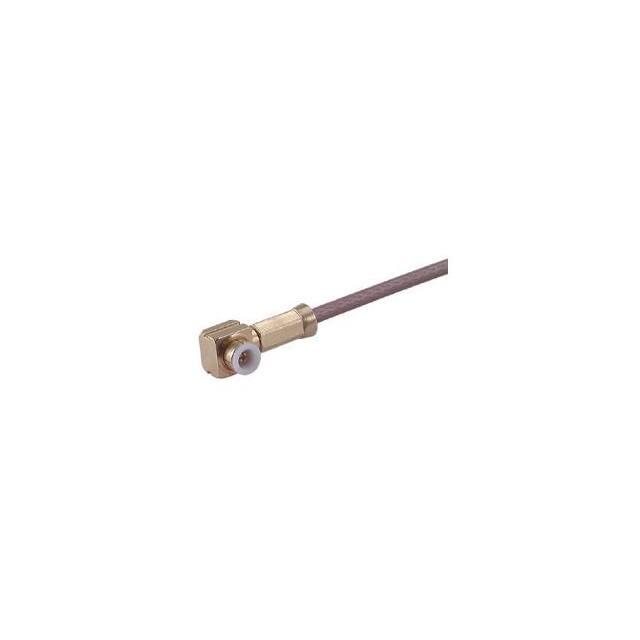

23001748

Manufacturer :

Huber+Suhner

Product Category :

Coaxial Connector (RF) Assemblies

Operating Frequency-Max :

6 GHz

Operating Temperature :

-55°C ~ 155°C

DIN Conformance :

No

Additional Feature :

APPLICABLE CABLE: RG 178B/U

Panel Mount :

No

Connector Style :

MMBX

Contact Termination :

Solder

Body Material :

Brass

Gender :

Male

Insertion Loss :

-

Shield Termination :

Crimp

Includes :

-

Filter Feature :

No

Voltage Rating :

250 V

Material :

Brass

Termination :

Solder

Center Contact Material :

BERYLLIUM COPPER

Ingress Protection :

-

Mating Cycles :

100

Depth :

5 mm

Reach Compliance Code :

Compliant

Impedance :

50Ohm

Center Contact Plating :

Gold

Dielectric Material :

Perfluoroalkoxy (PFA), Polytetrafluoroethylene (PTFE)

Max Operating Temperature :

155 °C

Coupling Type :

Snap

Contact Plating :

Gold

ECCN Code :

EAR99

Connector Type :

RF CONNECTOR

Body Finish :

Gold

Mounting Type :

CABLE

Number of Ports :

1

Cable Group :

RG-178, 196

VSWR :

1.02

Features :

-

Insulation Material :

Polymer

HTS Code :

8536.69.40.10

Length :

6.1 mm

Mounting Feature :

-

Series :

-

Body/Shell Style :

PLUG

MIL Conformance :

No

Fastening Type :

Snap-On

Contact Gender :

Male

Frequency - Max :

12.4 GHz

Min Operating Temperature :

-55 °C

Base Product Number :

16_MMBX-50

IEC Conformance :

No

Product Status :

Active

Termination Type :

Crimp

Housing Color :

Gold

Characteristic Impedance :

50 Ω

RoHS :

Compliant

Mounting Style :

RIGHT ANGLE

Contact Material :

Brass

Package :

Bulk
