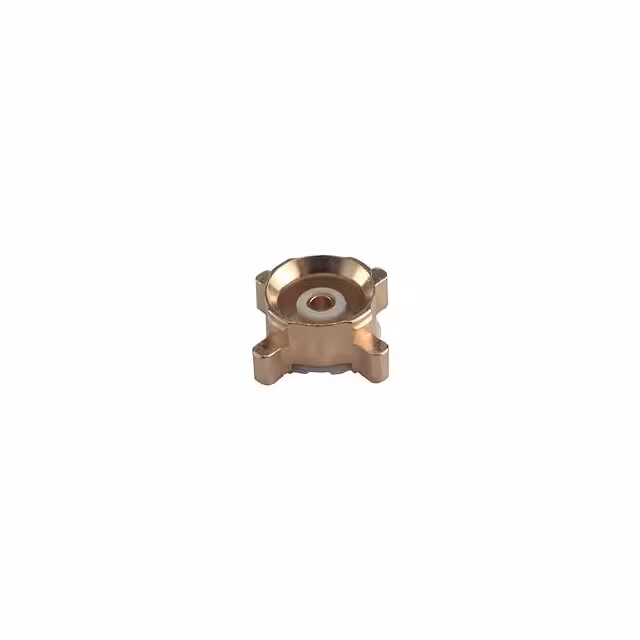

23001783

Manufacturer :

Huber+Suhner

Product Category :

Coaxial Connector (RF) Assemblies

Operating Frequency-Max :

6 GHz

IEC Conformance :

No

Impedance :

50Ohm

Operating Temperature :

-55°C ~ 155°C

Housing Color :

Gold

Center Contact Plating :

Gold

Voltage Rating :

250 V

Cable Group :

-

Filter Feature :

No

Mounting Feature :

-

Mounting Style :

Straight

HTS Code :

8536.69.40.10

Panel Mount :

No

Mounting Type :

Surface Mount

Shield Termination :

Solder

Termination Type :

Solder

Package :

Tape and Reel (TR);Cut Tape (CT);

Reach Compliance Code :

Compliant

Ingress Protection :

-

Series :

-

Body Finish :

Gold

Dielectric Material :

Liquid Crystal Polymer (LCP)

Fastening Type :

Snap-On

DIN Conformance :

No

Connector Style :

MMBX

MIL Conformance :

No

Body Material :

Brass

Coupling Type :

Snap

Connector Type :

Jack, Female Socket

Characteristic Impedance :

50 Ω

Frequency - Max :

12.4 GHz

Contact Gender :

FEMALE

Contact Termination :

Solder

Base Product Number :

82_MMBX

VSWR :

1.02

Manufacturer :

HUBER+SUHNER

Product Status :

Active

ECCN Code :

EAR99

Insertion Loss :

-

Number of Ports :

1

Features :

-

Center Contact Material :

Brass

Includes :

-

Body/Shell Style :

JACK

Mating Cycles :

100
