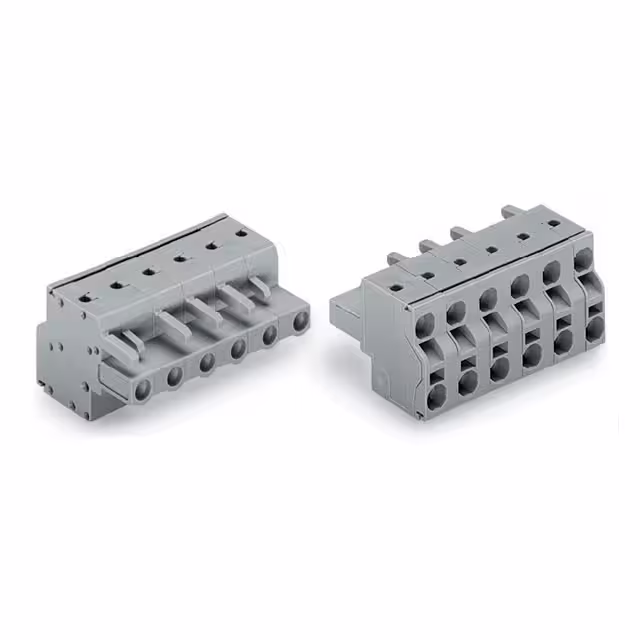

231-2207/026-000

Manufacturer :

WAGO

Product Category :

Headers, Plugs and Sockets

Type :

231-2207/026-000

Contact Tail Length :

-

HTS :

8536.69.40.40

Positions Per Level :

7

ECCN (US) :

EAR99

Wire Strip Length :

9-10mm

Material of contact surface :

Tin

Insulation Height :

0.819 (20.80mm)

With protective conductor :

No

Current - UL :

20 A

Over voltage category :

III

RoHS :

Compliant

Voltage - IEC :

1 kV

Package :

Box

Size :

24-12 AWG

Connector Type :

PLUG

Connectable conductor cross section fine-strand with cable end sleeve :

0.25 - 1.5

Current :

20 A

Degree of protection (IP), mounted :

IP20

Connection :

Spring-loaded terminal

Termination Style :

Screwless - Push-In Spring

Nominal voltage :

630V

PPAP :

No

Height :

26.45mm

Screw Size :

-

Type of electric connection :

Spring clamp connection

Series :

231

Pitch :

0.295 (7.50mm)

Connectable conductor cross section multi-wired :

0.2 - 2.5

Manufacturer :

Wago

Pollution degree :

2

Rated surge voltage :

6

Operating Temperature :

-60°C ~ 85°C

Inflammability class of insulation material according to with UL94 :

V0

Material Flammability Rating :

UL94 V-0

Automotive :

No

Connector contact surface :

Tin plated

Plug Wire Entry :

180°

Number of Positions :

14

Dim :

(L x W x H) 20.80 x 50.00 x 26.45 mm

max. cross section :

2.5mm²

Content :

50pc(s)

AWG max. :

12

Connectable conductor cross section solid-core :

0.2 - 2.5

Torque - Screw :

-

Number of Levels :

1

Voltage - UL :

600 V

Manufacturer part # :

231-2207/026-000

Stripping length (max.) :

10.00mm

Industrial packaging :

yes

Min. cross section :

0.2mm²

Temperature :

-60-85 °C

No. of rows :

1

Mounting Type :

Free Hanging (In-Line)

Features :

Retention Latches (Non-Wire Side)

Material contact :

Other copper alloys

Header Orientation :

-

Housing Material :

Polyamide (PA66), Nylon 6/6

Material housing :

Plastic

Number of Rows :

1

Color :

Grey

Contact Material :

COPPER ALLOY

Pins per row :

7

Product Status :

Active

Wire Size :

24-12 AWG

Flammability Rating :

UL94 V-0

Case material :

Polyamide 6.6

Number of Contacts :

7 Pole

Width :

50.00mm

Length :

20.80mm

Ingress Protection :

-

Stripping Length :

9-10 mm

Wire Gauge or Range - mm² :

0.2-2.5mm²

Connectable conductor cross section fine-strand without cable end sleeve :

0.2 - 2.5

Contact Mating Finish :

Tin

Voltage :

300 V

Current - IEC :

16A

EU RoHS :

Compliant

Total number of pins :

7

Approvals :

CB, UL

Rated current In :

16

AWG (min.) :

24

CS :

7.50mm

Contact Finish :

Tin

Housing Color :

Grey

Wire Gauge or Range - AWG :

12-24 AWG
