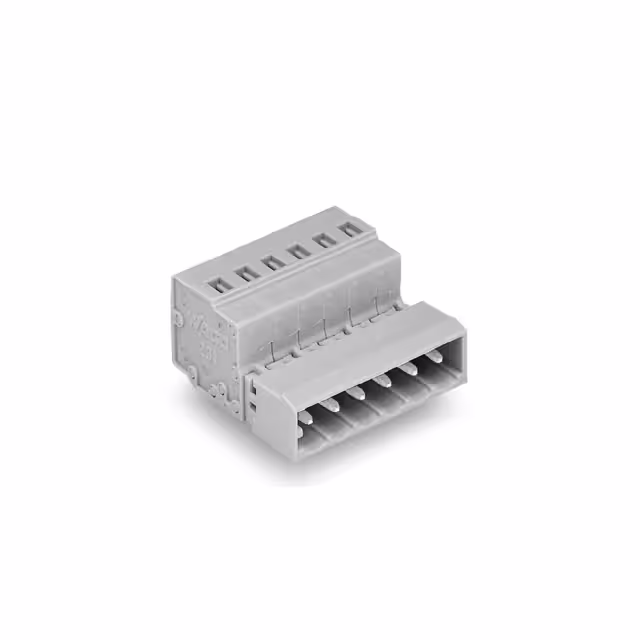

231-602

Manufacturer :

WAGO

Product Category :

Headers, Plugs and Sockets

Content :

100pc(s)

Min. cross section :

0.08mm²

Temperature :

-60-100 °C

Voltage - IEC :

630 V

Operating Temp Range :

-60C to 100C

Number of Decks :

1

Contact Finish :

Tin

Contact Pitch (mm) :

5(mm)

Positions Per Level :

2

Current :

15 A

Packaging :

Box

Rated surge voltage :

4

Mounting Style :

CABLE

Housing Material :

Polyamide 6/6

Wire Gauge or Range - mm² :

0.08-2.5mm²

Connector contact surface :

Tin plated

Safety Approval :

UL; VDE; CSA

Connection :

Spring-loaded terminal

Wire Size (AWG) :

28AWG to 12AWG

Height :

14.3mm

Material housing :

Plastic

ECCN Code :

EAR99

With protective conductor :

No

Dim :

(L x W x H) 27.5 x 13.2 x 14.3 mm

Product Status :

Active

No. of rows :

1

Manufacturer part # :

231-602

Industrial packaging :

yes

Type :

Terminal Block

Stripping Length :

8-9 mm

Reach Compliance Code :

Compliant

Voltage :

300 V

Fastening Method :

PLUG IN/SPRING LOADED

Nominal current - rounded value :

12A

Wire Size :

28-12 AWG

Approvals :

CB, CSA, UR

Current Rating (Max) :

12(A)

Contact Tail Length :

-

Contact Plating :

Tin

Number of Levels :

1

HTS Code :

8536.69.40.40

Min. temperature :

-60°C

Package :

Box

Housing Color :

Gray

CS :

5mm

Contact Material :

Electrolytic Copper

Wire Gauge or Range - AWG :

12-28 AWG

Rated Voltage :

320V

Screw Size :

-

Termination Style :

Screwless - Spring Cage, Tension Clamp

Wire Strip Length :

8-9mm

Max. temperature :

+100°C

Connectable conductor cross section fine-strand with cable end sleeve :

0.25 - 1.5

Connectable conductor cross section multi-wired :

0.08 - 2.5

Additional Feature :

Cage Clamp

Pins per row :

2

Pin shape :

Square

Contact Mating Finish :

Tin

Size :

28-12 AWG

Pollution degree :

2

Operating Temperature :

-60°C ~ 100°C

Insulation Height :

0.563 (14.30mm)

Nominal current :

12A

Product Length (mm) :

13.2(mm)

Ingress Protection :

-

Case material :

Polyamide

Inflammability class of insulation material according to with UL94 :

V0

Wire Gauge :

12-28(AWG)

Manufacturer :

Wago

Number of Rows :

1

Total number of pins :

2

Series :

300

Color :

Gray

Wire Cross Section :

2.5 mm2

Gender :

M

Current - IEC :

12A

Features :

-

Operating Voltage (Max) :

320V

Terminal and Terminal Block Type :

MODULAR TERMINAL BLOCK

Torque - Screw :

-

Degree of protection (IP), mounted :

IP10

Rated current In :

12

Voltage - UL :

600 V

AWG (min.) :

28

AWG max. :

12

Number of Positions :

2

Header Orientation :

-

Over voltage category :

III

Number of Contact Rows :

1

Connectable conductor cross section fine-strand without cable end sleeve :

0.08 - 2.5

Material Flammability Rating :

UL94 V-0

Plug Wire Entry :

180°

Board contact surface :

Tin plated

Width :

13.2mm

Current - UL :

15 A

Product Height (mm) :

14.3(mm)

Material of contact surface :

Tin

Number of Ways :

2

Connectable conductor cross section solid-core :

0.08 - 2.5

max. cross section :

2.50mm²

Rad Hardened :

No

Product Depth (mm) :

27.5(mm)

Pitch :

0.197 (5.00mm)

Rated Current :

12A

Mounting Type :

Free Hanging (In-Line)

Nominal voltage :

320V

Length :

27.5mm

Material contact :

Other copper alloys

Number of Contacts :

2(POS)

Type of electric connection :

Spring clamp connection

Body Orientation :

RIGHT ANGLE
