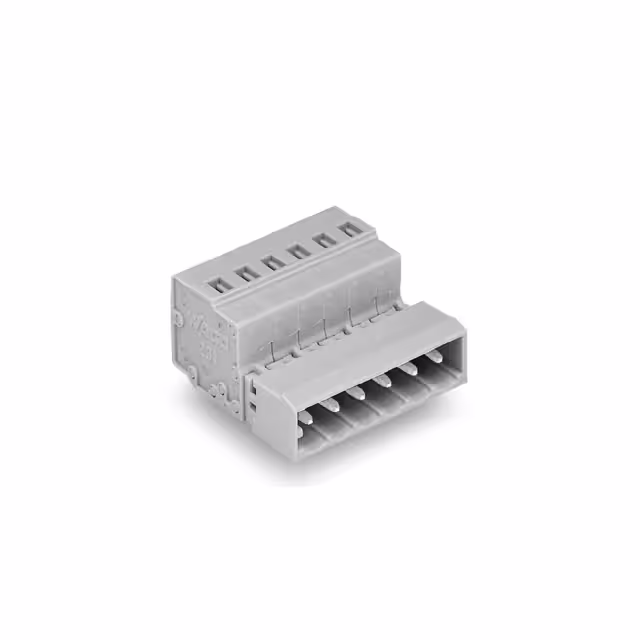

231-606

Manufacturer :

WAGO

Product Category :

Headers, Plugs and Sockets

Wire Size (AWG) :

28AWG to 12AWG

Contact Finish :

Tin

Number of Contacts :

6 Pole

Dim :

(L x W x H) 27.5 x 33.2 x 14.3 mm

Connectable conductor cross section solid-core :

0.08 - 2.5

Voltage - IEC :

630 V

Material Flammability Rating :

UL94 V-0

Inflammability class of insulation material according to with UL94 :

V0

Contact Mating Finish :

Tin

Width :

33.2mm

Wire Gauge or Range - mm² :

0.08-2.5mm²

Mounting Type :

Free Hanging (In-Line)

Connection :

Spring-loaded terminal

Max. temperature :

+100°C

Length :

27.5mm

With protective conductor :

No

Nominal voltage :

320V

Stripping Length :

8-9 mm

Connector contact surface :

Tin plated

Min. temperature :

-60°C

Operating Temperature :

-60°C ~ 100°C

Board contact surface :

Tin plated

Current - IEC :

12A

Manufacturer part # :

231-606

Size :

28-12 AWG

Connectable conductor cross section fine-strand without cable end sleeve :

0.08 - 2.5

Color :

Gray

Plug Wire Entry :

180°

Screw Size :

-

Current - UL :

15 A

Connectable conductor cross section multi-wired :

0.08 - 2.5

Current :

15 A

Industrial packaging :

yes

Rated Voltage :

320V

Material contact :

Other copper alloys

Total number of pins :

6

Nominal current - rounded value :

12A

Rated current In :

12

Case material :

Polyamide

Type :

WAGO GmbH and Co. KG

Material housing :

Plastic

Temperature :

-60-100 °C

Number of Positions :

6

Pin shape :

Square

Torque - Screw :

-

Package :

Box

Header Orientation :

-

Nominal current :

12A

Positions Per Level :

6

Wire Strip Length :

8-9mm

Housing Material :

Polyamide (PA66), Nylon 6/6

Series :

300

Product Status :

Active

Pollution degree :

2

Rated surge voltage :

4

Features :

-

No. of rows :

1

Insulation Height :

0.563 (14.30mm)

Type of electric connection :

Spring clamp connection

Pitch :

0.197 (5.00mm)

Over voltage category :

III

Height :

14.3mm

Material of contact surface :

Tin

Ingress Protection :

-

Contact Tail Length :

-

Degree of protection (IP), mounted :

IP10

CS :

5mm

Min. cross section :

0.08mm²

Pins per row :

6

Content :

50pc(s)

Voltage - UL :

600 V

Voltage :

300 V

AWG max. :

12

Wire Size :

28-12 AWG

Contact Material :

Electrolytic Copper

Termination Style :

Screwless - Spring Cage, Tension Clamp

max. cross section :

2.50mm²

Connectable conductor cross section fine-strand with cable end sleeve :

0.25 - 1.5

Manufacturer :

Wago

Number of Levels :

1

Approvals :

CB, CSA, UL, UR

Wire Gauge or Range - AWG :

12-28 AWG

Rated Current :

12A

AWG (min.) :

28
