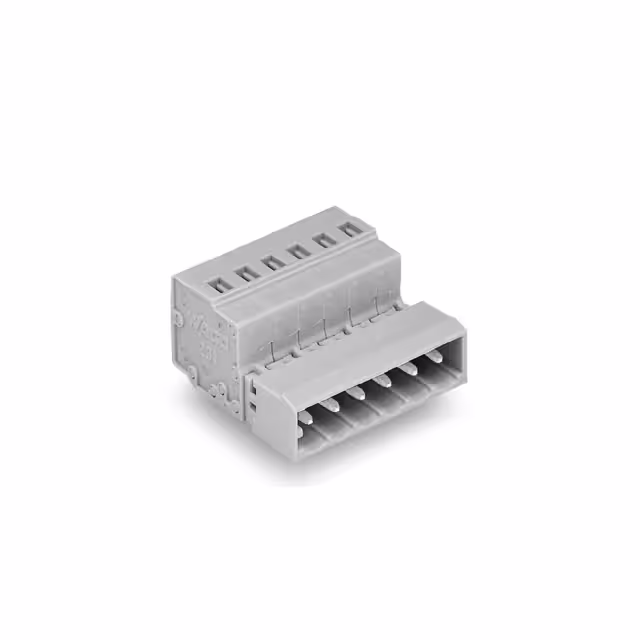

231-617

Manufacturer :

WAGO

Product Category :

Headers, Plugs and Sockets

Inflammability class of insulation material according to with UL94 :

V0

Wire Size :

28-12 AWG

Connectable conductor cross section solid-core :

0.08 - 2.5

Contact Finish :

Tin

CS :

5mm

Pitch :

0.197 (5.00mm)

Total number of pins :

17

Nominal current - rounded value :

12A

PPAP :

No

Number of Contacts :

17 Pole

Current :

15 A

Rated surge voltage :

4

Mounting Type :

Free Hanging (In-Line)

Automotive :

No

Height :

14.3mm

Positions Per Level :

17

Wire Gauge or Range - mm² :

0.08-2.5mm²

Color :

Gray

Material Flammability Rating :

UL94 V-0

HTS :

8536.69.40.40

EU RoHS :

Compliant

Rated current In :

12

Degree of protection (IP), mounted :

IP10

Stripping Length :

8-9 mm

Case material :

Polyamide

AWG (min.) :

28

Number of Levels :

1

Operating Temperature :

-60°C ~ 100°C

Insulation Height :

0.563 (14.30mm)

Current - IEC :

12A

Voltage - IEC :

630 V

Dim :

(L x W x H) 27.5 x 88.2 x 14.3 mm

Voltage :

300 V

ECCN (US) :

EAR99

Type :

WAGO GmbH and Co. KG

Torque - Screw :

-

Connectable conductor cross section fine-strand without cable end sleeve :

0.08 - 2.5

Voltage - UL :

600 V

Pollution degree :

2

Connectable conductor cross section multi-wired :

0.08 - 2.5

Wire Strip Length :

8-9mm

Max. temperature :

+100°C

Plug Wire Entry :

180°

Nominal voltage :

320V

Housing Material :

Polyamide (PA66), Nylon 6/6

Type of electric connection :

Spring clamp connection

Wire Gauge or Range - AWG :

12-28 AWG

Connectable conductor cross section fine-strand with cable end sleeve :

0.25 - 1.5

Connection :

Spring-loaded terminal

Width :

88.2mm

Product Status :

Active

Series :

300

Nominal current :

12A

No. of rows :

1

Material contact :

Other copper alloys

Material housing :

Plastic

Current - UL :

15 A

With protective conductor :

No

Material of contact surface :

Tin

Pins per row :

17

Contact Material :

Electrolytic Copper

Board contact surface :

Tin plated

Pin shape :

Square

Temperature :

-60-100 °C

Industrial packaging :

yes

Header Orientation :

-

Over voltage category :

III

Approvals :

CB, CSA, UL, UR

AWG max. :

12

Size :

28-12 AWG

Contact Tail Length :

-

Termination Style :

Screwless - Push-In Spring

Number of Positions :

17

Connector contact surface :

Tin plated

Min. cross section :

0.08mm²

Manufacturer part # :

231-617

Min. temperature :

-60°C

Ingress Protection :

-

Screw Size :

-

Content :

25pc(s)

Manufacturer :

Wago

Length :

27.5mm

Features :

-

Contact Mating Finish :

Tin

max. cross section :

2.50mm²
