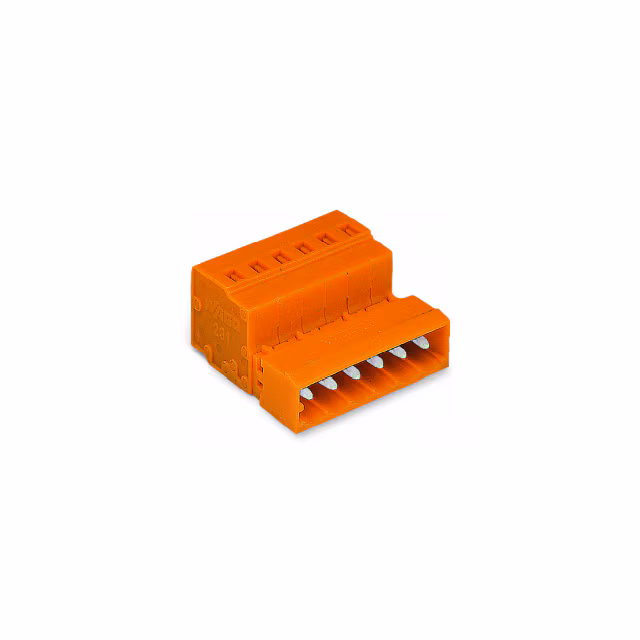

231-644

Manufacturer :

WAGO

Product Category :

Headers, Plugs and Sockets

Nominal current :

12A

Number of Contacts :

14

Insulation Height :

0.563 (14.30mm)

Inflammability class of insulation material according to with UL94 :

V0

Connectable conductor cross section fine-strand with cable end sleeve :

0.25 - 1.5

RoHS :

Compliant

HTS :

8536.69.40.40

Type of electric connection :

Spring clamp connection

Length :

27.5mm

Series :

300

Rated surge voltage :

4

AWG max. :

12

Termination Method :

Spring Clamp

Plug Wire Entry :

180°

Number of Rows :

1

Nominal voltage :

320V

Material of contact surface :

Tin

Content :

25pc(s)

Degree of protection (IP), mounted :

IP10

Pin shape :

Square

Max Operating Temperature :

100 °C

Contact Material :

Electrolytic Copper

Connection :

Spring-loaded terminal

Gender :

M

Mounting Type :

Free Hanging (In-Line)

Wire Gauge or Range - AWG :

12-28 AWG

No. of rows :

1

Temperature :

-60-100 °C

Wire Strip Length :

8-9mm

max. cross section :

2.50mm²

Connector Type :

PLUG

Stripping Length :

8-9 mm

Current - UL :

15 A

Ingress Protection :

-

Packaging :

Box

Operating Temperature :

-60°C ~ 100°C

Height :

14.3mm

ECCN (US) :

EAR99

Body Orientation :

RIGHT ANGLE

Number of Positions :

14

Rated current In :

12

Housing Color :

Orange

Positions Per Level :

14

Material housing :

Plastic

Width :

74.32mm

Manufacturer part # :

231-644

Wire Gauge or Range - mm² :

0.08-2.5mm²

Maximum Current Rating (A) :

15

Terminal Pitch (mm) :

5.08

Current - IEC :

12A

Flammability Rating :

UL94 V-0

Package :

Box

Housing Material :

Polyamide (PA66), Nylon 6/6

Contact Tail Length :

-

Over voltage category :

III

Color :

Orange

Insulation Material :

Polyamide

AWG (min.) :

28

Voltage - IEC :

630 V

Wire Size :

28-12 AWG

Size :

28-12 AWG

Min Operating Temperature :

-60 °C

Case material :

Polyamide

Tradename :

CAGE CLAMP?

Product Status :

Active

Nominal current - rounded value :

12A

Connectable conductor cross section fine-strand without cable end sleeve :

0.08 - 2.5

Pitch :

0.200 (5.08mm)

With protective conductor :

No

Current :

15 A

Termination Style :

Screwless - Spring Cage, Tension Clamp

PPAP :

No

Dim :

(L x W x H) 27.5 x 74.32 x 14.3 mm

Type :

Terminal Block

Torque - Screw :

-

Min. temperature :

-60°C

Header Orientation :

-

Material contact :

Other copper alloys

Connectable conductor cross section multi-wired :

0.08 - 2.5

Pollution degree :

2

Number of Levels :

1

CS :

5.08mm

Connectable conductor cross section solid-core :

0.08 - 2.5

Material Flammability Rating :

UL94 V-0

Max. temperature :

+100°C

Industrial packaging :

yes

Min. cross section :

0.08mm²

Approvals :

CB, UL, UR

Current Rating :

12 A

Total number of pins :

14

Mounting :

Cable Mount

Voltage :

300 V

Contact Finish :

Tin

Contact Mating Finish :

Tin

EU RoHS :

Compliant

Features :

-

Manufacturer :

Wago

Screw Size :

-

Board contact surface :

Tin plated

Automotive :

No

Voltage - UL :

600 V

Connector contact surface :

Tin plated

Pins per row :

14
