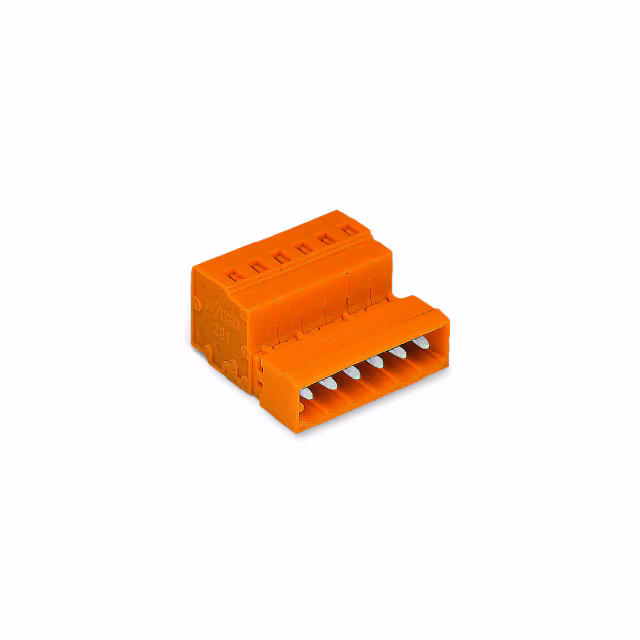

231-645

Manufacturer :

WAGO

Product Category :

Headers, Plugs and Sockets

Positions Per Level :

15

Contact Finish :

Tin

Color :

Orange

Voltage - IEC :

630 V

HTS :

8536.69.40.40

Insulation Height :

0.563 (14.30mm)

Screw Size :

-

Mounting Type :

Free Hanging (In-Line)

Length :

27.5mm

Voltage :

300 V

Voltage - UL :

600 V

Product Status :

Active

PPAP :

No

AWG (min.) :

28

Case material :

Polyamide

Pins per row :

15

Header Orientation :

-

Nominal current - rounded value :

12A

Wire Size :

28-12 AWG

Industrial packaging :

yes

Manufacturer part # :

231-645

ECCN (US) :

EAR99

Current :

15 A

Connectable conductor cross section solid-core :

0.08 - 2.5

Package :

Box

Manufacturer :

Wago

Contact Tail Length :

-

Material housing :

Plastic

AWG max. :

12

Connectable conductor cross section fine-strand without cable end sleeve :

0.08 - 2.5

Connection :

Spring-loaded terminal

Current - IEC :

12A

Torque - Screw :

-

Current - UL :

15 A

Connectable conductor cross section multi-wired :

0.08 - 2.5

Contact Mating Finish :

Tin

Type :

231-645

Wire Gauge or Range - mm² :

0.08-2.5mm²

Content :

25pc(s)

Width :

79.4mm

Connector contact surface :

Tin plated

Material of contact surface :

Tin

Pitch :

0.200 (5.08mm)

Ingress Protection :

-

Wire Gauge or Range - AWG :

12-28 AWG

Degree of protection (IP), mounted :

IP10

Number of Positions :

15

Pin shape :

Square

Stripping Length :

8-9 mm

Nominal voltage :

320V

Features :

-

No. of rows :

1

Number of Contacts :

15 Pole

Termination Style :

Screwless - Spring Cage, Tension Clamp

Series :

300

EU RoHS :

Compliant

Operating Temperature :

-60°C ~ 100°C

CS :

5.08mm

Rated surge voltage :

4

Housing Material :

Polyamide (PA66), Nylon 6/6

Number of Levels :

1

Min. temperature :

-60°C

Dim :

(L x W x H) 27.5 x 79.4 x 14.3 mm

Approvals :

CB, UL, UR

Material contact :

Other copper alloys

Board contact surface :

Tin plated

Type of electric connection :

Spring clamp connection

Temperature :

-60-100 °C

Pollution degree :

2

Inflammability class of insulation material according to with UL94 :

V0

Over voltage category :

III

Material Flammability Rating :

UL94 V-0

max. cross section :

2.50mm²

Contact Material :

Electrolytic Copper

Rated current In :

12

Automotive :

No

Total number of pins :

15

Height :

14.3mm

Wire Strip Length :

8-9mm

Nominal current :

12A

Min. cross section :

0.08mm²

Plug Wire Entry :

180°

Connectable conductor cross section fine-strand with cable end sleeve :

0.25 - 1.5

With protective conductor :

No

Size :

28-12 AWG

Max. temperature :

+100°C
