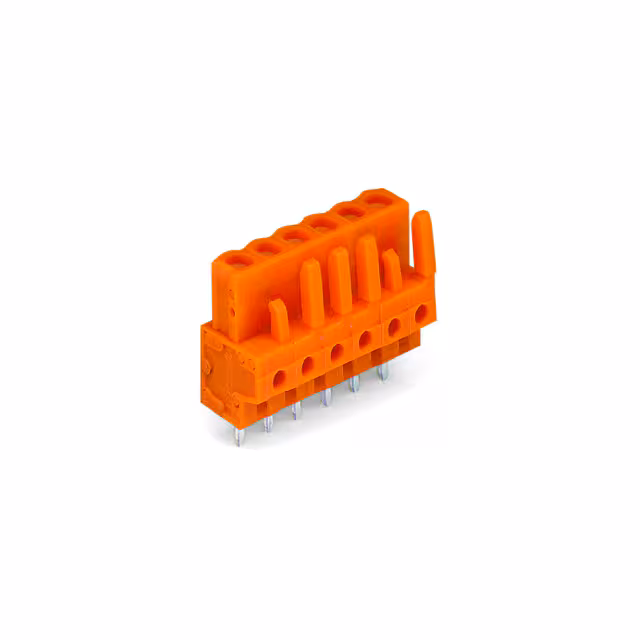

232-163

Manufacturer :

WAGO

Product Category :

Headers, Plugs and Sockets

Wire Gauge or Range - AWG :

-

Mounting Type :

Through Hole

Mounting :

Through Hole

Minimum Operating Temperature (°C) :

-60

Manufacturer :

Wago

Housing Material :

Polyamide (PA66), Nylon 6/6

Nominal voltage :

320V

Insulation Height :

0.719 (18.26mm)

Current :

15 A

Features :

Retention Latches (Wire Side)

EU RoHS :

Compliant

Width :

23.25mm

Current Rating (Max) :

15(A)

Termination Style :

Solder

Number of Circuits :

3

Voltage - UL :

600 V

Series :

232

Maximum Operating Temperature (°C) :

85

Wire Strip Length :

-

Number of Rows :

1

Current - UL :

15 A

Product Status :

Active

PPAP :

No

Product Height (mm) :

18.25

Operating Temperature :

-60°C ~ 85°C

Packaging :

Box

Height :

16.74mm

Product Length (mm) :

16.74

Body Orientation :

Straight

Number of Contacts :

3

Industrial packaging :

yes

No. of rows :

1

Connection :

Print

Terminal Pitch (mm) :

5.08

Board contact surface :

Tin plated

Approvals :

CB, UR

Plug Wire Entry :

-

Pitch :

0.200 (5.08mm)

Screw Size :

-

Length :

11.60mm

Number of Contact Rows :

1

Product Depth (mm) :

11.6

Current - IEC :

12A

Number of Positions :

3

Contact Pitch (mm) :

5.08(mm)

Contact Material :

COPPER ALLOY

Material Flammability Rating :

UL94 V-0

Type :

Terminal Block

Torque - Screw :

-

Automotive :

No

Header Orientation :

Vertical

Manufacturer part # :

232-163

HTS :

8536.69.40.40

Contact Tail Length :

0.197 (5.00mm)

Voltage - IEC :

630 V

Positions Per Level :

3

Temperature :

-60-85 °C

Rad Hardened :

No

ECCN (US) :

EAR99

Total number of pins :

3

Connector contact surface :

Tin plated

Content :

100pc(s)

Maximum Voltage Rating :

300V

Termination Method :

Solder

Package :

Box

Number of Levels :

1

Operating Voltage (Max) :

300V

Contact Mating Finish :

Tin

Contact Finish :

Tin

Wire Gauge or Range - mm² :

-

Ingress Protection :

-

Maximum Current Rating (A) :

15

Depth :

11.6mm

CS :

5.08mm

Color :

Orange

Mounting Style :

Through Hole

Voltage :

300 V

Pins per row :

3

Dim :

(L x W x H) 11.60 x 23.25 x 16.74 mm
