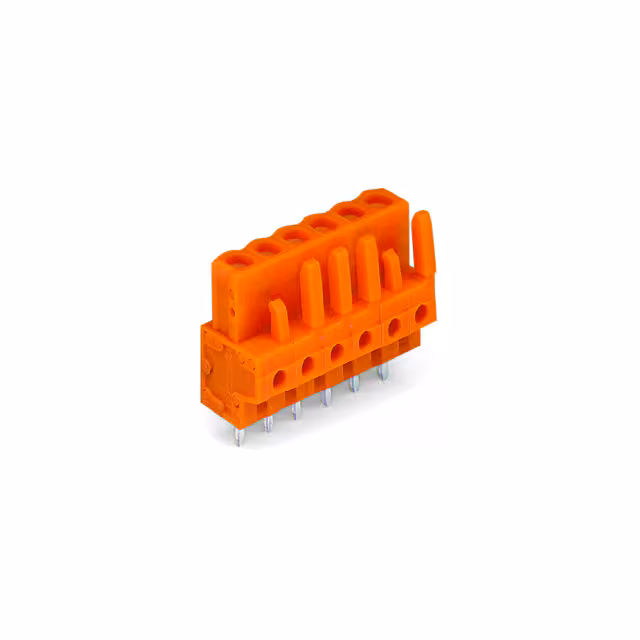

232-171

Manufacturer :

WAGO

Product Category :

Headers, Plugs and Sockets

Rated current In :

12

CS :

5.08mm

Operating Temperature :

-60°C ~ 85°C

Screw Size :

-

Number of Contacts :

11 Pole

Over voltage category :

III

Wire Gauge or Range - AWG :

-

Automotive :

No

Insulation Height :

0.719 (18.26mm)

Total number of pins :

11

Material of contact surface :

Tin

Inflammability class of insulation material according to with UL94 :

V0

Wire Gauge or Range - mm² :

-

Voltage :

300 V

Wire Strip Length :

-

Width :

57.38mm

Contact Mating Finish :

Tin

Nominal voltage :

320V

Voltage - UL :

600 V

Approvals :

CB, UR

Series :

232

Number of Levels :

1

Length :

11.60mm

Current - IEC :

12A

Torque - Screw :

-

Type of fastening :

Solder

Rated surge voltage :

4

Features :

Retention Latches (Wire Side)

ECCN (US) :

EAR99

Type :

232-171

Temperature :

-60-85 °C

Termination Style :

Solder

PPAP :

No

Header Orientation :

Vertical

Material Flammability Rating :

UL94 V-0

EU RoHS :

Compliant

Voltage - IEC :

630 V

Pitch :

0.200 (5.08mm)

Type of electric connection :

Soldering connection

Product Status :

Active

Color :

Orange

Pollution degree :

2

No. of rows :

1

Positions Per Level :

11

Packaging type :

Carton (box)

Current - UL :

15 A

Manufacturer part # :

232-171

Industrial packaging :

yes

Depth :

11.6mm

Content :

25pc(s)

Contact Material :

COPPER ALLOY

Housing Material :

Polyamide (PA66), Nylon 6/6

Pins per row :

11

Number of Positions :

11

Dim :

(L x W x H) 11.60 x 57.38 x 23.25 mm

Ingress Protection :

-

Mounting Type :

Through Hole

Connector contact surface :

Tin plated

Plug Wire Entry :

-

Connection :

Print

Manufacturer :

Wago

Height :

23.25mm

Package :

Box

Current :

15 A

Board contact surface :

Tin plated

Contact Finish :

Tin

Contact Tail Length :

0.197 (5.00mm)
