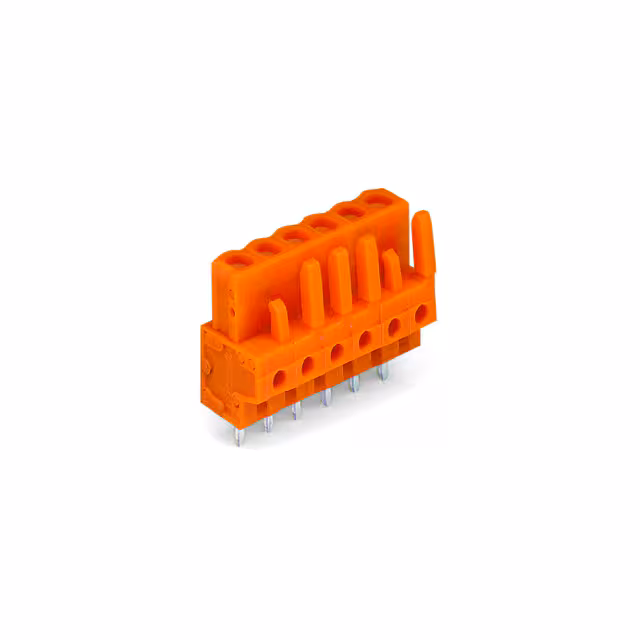

232-175

Manufacturer :

WAGO

Product Category :

Headers, Plugs and Sockets

Pollution degree :

2

Type of electric connection :

Soldering connection

Features :

Retention Latches (Wire Side)

Contact Mating Finish :

Tin

Series :

232

Mounting Type :

Through Hole

Inflammability class of insulation material according to with UL94 :

V0

Voltage :

300 V

No. of rows :

1

Color :

Orange

Wire Gauge or Range - mm² :

-

Width :

77.70mm

Number of Positions :

15

Ingress Protection :

-

Type of fastening :

Solder

Length :

11.60mm

ECCN (US) :

EAR99

Temperature :

-60-85 °C

Package :

Box

EU RoHS :

Compliant

Contact Tail Length :

0.197 (5.00mm)

Automotive :

No

Nominal voltage :

320V

PPAP :

No

Over voltage category :

III

Current - UL :

15 A

Approvals :

CB, UR

Height :

23.25mm

Current :

15 A

Number of Levels :

1

Packaging type :

Carton (box)

Connection :

Print

Rated surge voltage :

4

Torque - Screw :

-

Depth :

11.6mm

Product Status :

Active

Total number of pins :

15

Content :

25pc(s)

Material Flammability Rating :

UL94 V-0

Manufacturer :

Wago

Header Orientation :

Vertical

Wire Strip Length :

-

Number of Contacts :

15 Pole

Material of contact surface :

Tin

Board contact surface :

Tin plated

Connector contact surface :

Tin plated

Insulation Height :

0.719 (18.26mm)

Termination Style :

Solder

Type :

232-175

Housing Material :

Polyamide (PA66), Nylon 6/6

Voltage - IEC :

630 V

Industrial packaging :

yes

Manufacturer part # :

232-175

Contact Material :

COPPER ALLOY

Screw Size :

-

Pins per row :

15

Contact Finish :

Tin

Positions Per Level :

15

Voltage - UL :

600 V

Dim :

(L x W x H) 11.60 x 77.70 x 23.25 mm

Rated current In :

12

Current - IEC :

12A

Plug Wire Entry :

-

Pitch :

0.200 (5.08mm)

Operating Temperature :

-60°C ~ 85°C

CS :

5.08mm

Wire Gauge or Range - AWG :

-
