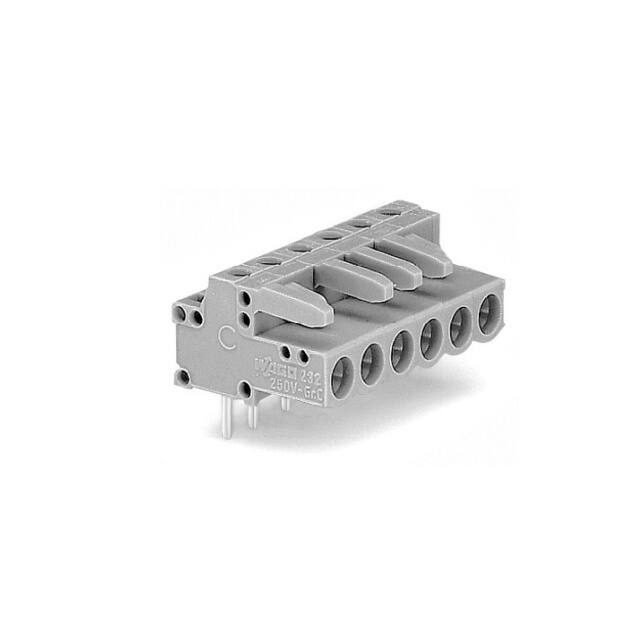

232-236

Manufacturer :

WAGO

Product Category :

Headers, Plugs and Sockets

Color :

Gray

Contact Finish :

Tin

Pitch :

0.197 (5.00mm)

Connector contact surface :

Tin plated

Type of fastening :

Solder

Insulation Height :

0.457 (11.60mm)

Manufacturer :

Wago

Wire Gauge or Range - mm² :

-

Packaging :

Box

Operating Temp Range :

-60C to 85C

Temperature :

-60-85 °C

Industrial packaging :

yes

EU RoHS :

Compliant

Contact Mating Finish :

Tin

Gender :

F

Pollution degree :

2

Mounting Type :

Through Hole

Features :

Retention Latches (Non-Wire Side)

Type :

232-236

Mounting Style :

Through Hole

Screw Size :

-

Automotive :

No

PPAP :

No

Header Orientation :

90°, Right Angle

Material Flammability Rating :

UL94 V-0

Current Rating (Max) :

12(A)

ECCN (US) :

EAR99

CS :

5mm

Voltage - IEC :

630 V

Number of Positions :

6

HTS :

8536.69.40.40

Board contact surface :

Tin plated

Manufacturer part # :

232-236

Number of Contacts :

6 Pole

Rated current In :

12

Dim :

(L x W x H) 16.60 x 31.50 x 18.25 mm

Content :

50pc(s)

Height :

18.25mm

Over voltage category :

III

Torque - Screw :

-

Ingress Protection :

-

Series :

232

Body Orientation :

RIGHT ANGLE

Type of electric connection :

Soldering connection

Nominal voltage :

320V

Housing Material :

Polyamide 6/6

Positions Per Level :

6

Wire Gauge or Range - AWG :

-

Wire Strip Length :

-

Packaging type :

Carton (box)

Rated surge voltage :

4

Number of Levels :

1

Width :

31.50mm

Number of Contact Rows :

1

Current - IEC :

12A

Total number of pins :

6

Contact Plating :

Tin

Voltage - UL :

600 V

Length :

16.60mm

Housing Color :

Gray

Voltage :

300 V

Pins per row :

6

Contact Material :

COPPER ALLOY

Inflammability class of insulation material according to with UL94 :

V0

Package :

Box

Depth :

18.25mm

No. of rows :

1

Connection :

Print

Termination Style :

Solder

Product Status :

Active

Current :

15 A

Operating Temperature :

-60°C ~ 85°C

Current - UL :

15 A

Material of contact surface :

Tin

Plug Wire Entry :

-

Contact Tail Length :

0.197 (5.00mm)
