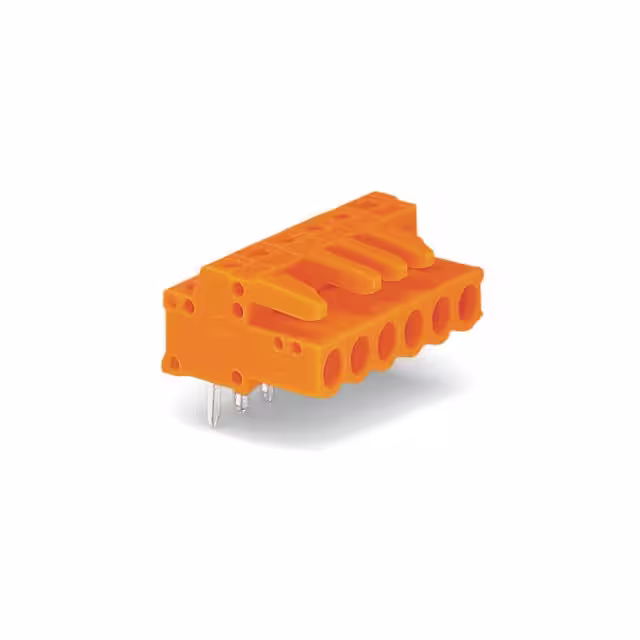

232-267

Manufacturer :

WAGO

Product Category :

Headers, Plugs and Sockets

Connector contact surface :

Tin plated

Manufacturer :

Wago

Screw Size :

-

Flammability Rating :

UL94 V-0

Plug Wire Entry :

-

Header Orientation :

90°, Right Angle

Contact Plating :

Tin

Mounting Type :

Through Hole

Contact Material :

COPPER ALLOY

Number of Rows :

1

Manufacturer part # :

232-267

Insulation Height :

0.457 (11.60mm)

Type :

232-267

Total number of pins :

7

Current :

15 A

Positions Per Level :

7

Material Flammability Rating :

UL94 V-0

Industrial packaging :

yes

Wire Strip Length :

-

Package :

Box

Features :

Retention Latches (Non-Wire Side)

Length :

16.60mm

Approvals :

CB, UR

Connector Type :

Socket

Dim :

(L x W x H) 16.60 x 37.06 x 18.25 mm

Voltage - IEC :

630 V

Contact Mating Finish :

Tin

Pitch :

0.200 (5.08mm)

Depth :

18.25mm

Content :

50pc(s)

Board contact surface :

Tin plated

Ingress Protection :

-

No. of rows :

1

Contact Tail Length :

0.197 (5.00mm)

Voltage - UL :

600 V

CS :

5.08mm

Connection :

Print

Temperature :

-60-85 °C

Housing Material :

Polyamide (PA66), Nylon 6/6

Contact Finish :

Tin

Operating Temperature :

-60°C ~ 85°C

Number of Levels :

1

Nominal voltage :

320V

Wire Gauge or Range - AWG :

-

Pins per row :

7

Product Status :

Active

Wire Gauge or Range - mm² :

-

Termination Style :

Solder

Width :

37.06mm

Number of Positions :

7

Current - UL :

15 A

Number of Contacts :

7 Pole

Series :

232

Height :

18.25mm

Torque - Screw :

-

Current - IEC :

12A

Color :

Orange

Voltage :

300 V

Housing Color :

Orange

RoHS :

Compliant
