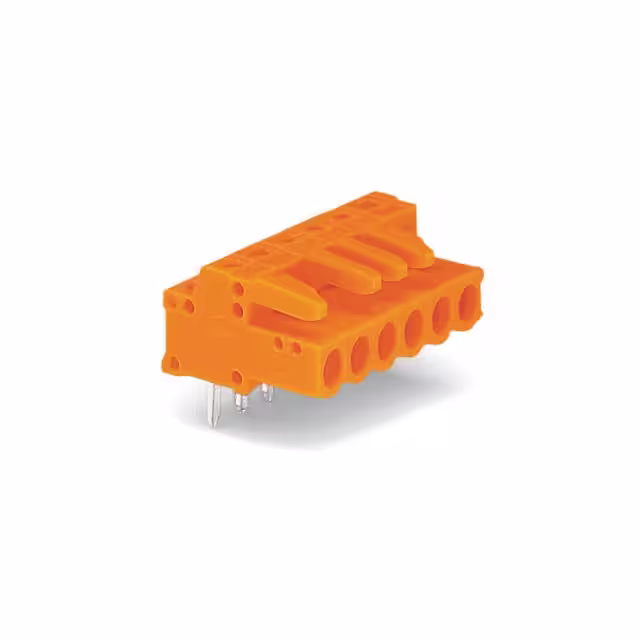

232-281

Manufacturer :

WAGO

Product Category :

Headers, Plugs and Sockets

Total number of pins :

21

Content :

10pc(s)

Nominal voltage :

320V

Material of contact surface :

Tin

Ingress Protection :

-

Approvals :

CB, UR

Depth :

18.25mm

Connection :

Print

Connector contact surface :

Tin plated

Current :

15 A

Voltage - UL :

600 V

Header Orientation :

90°, Right Angle

EU RoHS :

Compliant

Contact Mating Finish :

Tin

ECCN (US) :

EAR99

PPAP :

No

Rated current In :

12

Material Flammability Rating :

UL94 V-0

Width :

108.18mm

Inflammability class of insulation material according to with UL94 :

V0

Voltage - IEC :

630 V

Housing Material :

Polyamide (PA66), Nylon 6/6

Temperature :

-60-85 °C

Current - IEC :

12A

Pins per row :

21

Contact Material :

COPPER ALLOY

Board contact surface :

Tin plated

Current - UL :

15 A

Insulation Height :

0.457 (11.60mm)

Pitch :

0.200 (5.08mm)

Dim :

(L x W x H) 16.60 x 108.18 x 18.25 mm

Product Status :

Active

Number of Contacts :

21 Pole

Screw Size :

-

Number of Levels :

1

CS :

5.08mm

Features :

Retention Latches (Non-Wire Side)

Manufacturer :

Wago

Wire Strip Length :

-

Wire Gauge or Range - mm² :

-

Plug Wire Entry :

-

Contact Finish :

Tin

Torque - Screw :

-

Contact Tail Length :

0.197 (5.00mm)

Package :

Box

Operating Temperature :

-60°C ~ 85°C

Over voltage category :

III

Termination Style :

Solder

Manufacturer part # :

232-281

Type :

232-281

Rated surge voltage :

4

Number of Positions :

21

Color :

Orange

Positions Per Level :

21

Length :

16.60mm

No. of rows :

1

Wire Gauge or Range - AWG :

-

Pollution degree :

2

Type of fastening :

Solder

Voltage :

300 V

Type of electric connection :

Soldering connection

Packaging type :

Carton (box)

Industrial packaging :

yes

Automotive :

No

Height :

18.25mm

Series :

232

Mounting Type :

Through Hole
