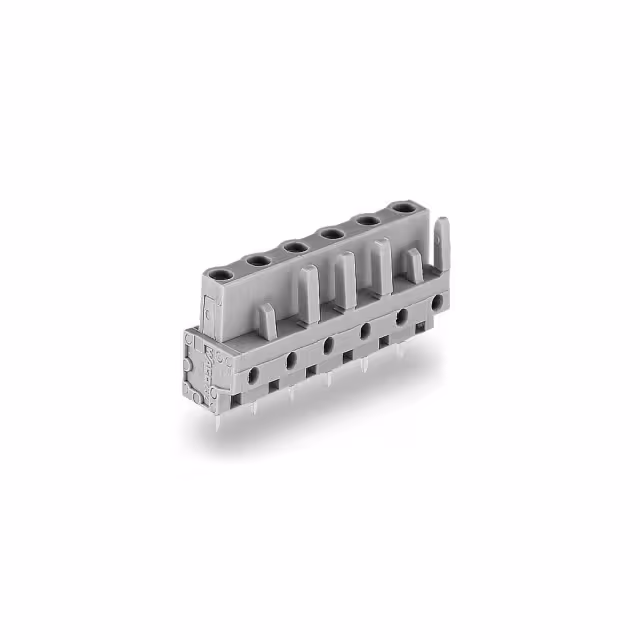

232-733

Manufacturer :

WAGO

Product Category :

Headers, Plugs and Sockets

Length :

11.60mm

Wire Gauge or Range - AWG :

-

Connector contact surface :

Tin plated

Board contact surface :

Tin plated

Operating Temperature :

-60°C ~ 85°C

Wire Strip Length :

-

Wire Gauge or Range - mm² :

-

Voltage - UL :

600 V

Flammability Rating :

UL94 V-0

Series :

232

Rated current In :

12

Number of Rows :

1

ECCN (US) :

EAR99

Pollution degree :

2

No. of rows :

1

Housing Material :

Polyamide (PA66), Nylon 6/6

Current :

15 A

Contact Mating Finish :

Tin

Torque - Screw :

-

Mounting Type :

Through Hole

Content :

100pc(s)

Features :

Retention Latches (Non-Wire Side)

Height :

21.50mm

Current - IEC :

12A

Housing Color :

Grey

Width :

23.25mm

Dim :

(L x W x H) 11.60 x 23.25 x 21.50 mm

CS :

7.50mm

HTS :

8536.69.40.40

Material Flammability Rating :

UL94 V-0

Product Status :

Active

Type of electric connection :

Soldering connection

EU RoHS :

Compliant

Voltage - IEC :

1 kV

Contact Finish :

Tin

Current - UL :

15 A

Type of fastening :

Solder

Packaging type :

Carton (box)

Number of Positions :

3

Depth :

11.6mm

Termination Style :

Solder

Voltage :

300 V

Nominal voltage :

630V

Ingress Protection :

-

Inflammability class of insulation material according to with UL94 :

V0

Type :

232-733

PPAP :

No

Contact Tail Length :

0.197 (5.00mm)

Over voltage category :

III

Total number of pins :

3

Industrial packaging :

yes

Pins per row :

3

Plug Wire Entry :

-

Automotive :

No

Positions Per Level :

3

Insulation Height :

0.719 (18.26mm)

Connection :

Print

Contact Material :

COPPER ALLOY

Manufacturer :

Wago

Package :

Box

Rated surge voltage :

6

Pitch :

0.295 (7.50mm)

Screw Size :

-

Contact Plating :

Tin

Connector Type :

Socket

Temperature :

-60-85 °C

Approvals :

CB, UR

Number of Contacts :

3 Pole

Color :

Grey

Manufacturer part # :

232-733

Material of contact surface :

Tin

Number of Levels :

1

Header Orientation :

Vertical

RoHS :

Compliant
