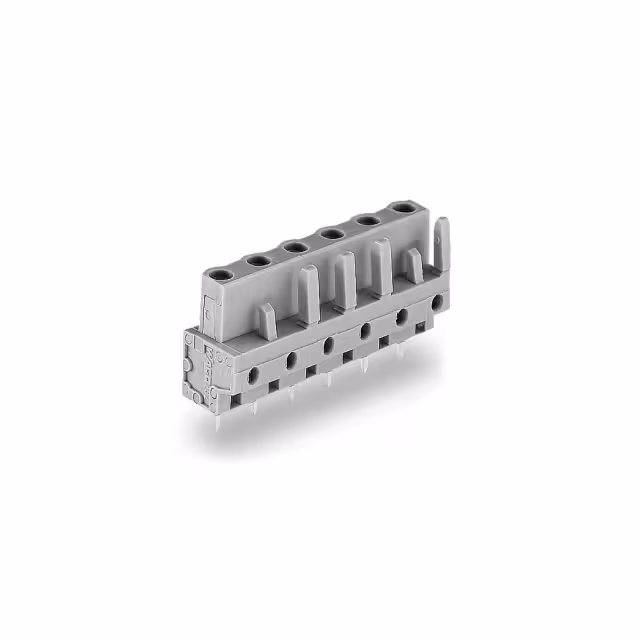

232-740

Manufacturer :

WAGO

Product Category :

Headers, Plugs and Sockets

Contact Mating Finish :

Tin

Tip - Chip Size :

--

Industrial packaging :

yes

Temperature Range :

--

Number of Rows :

1

Manufacturer part # :

232-740

Depth :

11.6mm

Temperature :

-60-85 °C

Tip - Shape :

Chisel

Dim :

(L x W x H) 11.60 x 74.00 x 23.25 mm

Nominal voltage :

630V

Pitch :

0.295 (7.50mm)

Contact Material :

COPPER ALLOY

Length :

0.669 (17.00mm)

Operating Temperature :

-60°C ~ 85°C

Product Status :

Active

Number of Positions :

10

Width :

0.050 (1.28mm)

Screw Size :

-

Insulation Height :

0.719 (18.26mm)

RoHS :

Compliant

Mounting Type :

Through Hole

Current :

15 A

Pins per row :

10

Content :

25pc(s)

Total number of pins :

10

Wire Strip Length :

-

Plug Wire Entry :

-

CS :

7.50mm

For Use With/Related Products :

Hakko 701, 702B, 937 w/907 Handpiece, 928 w/900M Handpiece, 934 w/933 Handpiece

Termination Style :

Solder

Connector Type :

Socket

No. of rows :

1

Wire Gauge or Range - AWG :

-

Flammability Rating :

UL94 V-0

Positions Per Level :

10

Manufacturer :

Wago

Current - IEC :

12A

Voltage :

300 V

Color :

Grey

Header Orientation :

Vertical

Housing Material :

Polyamide (PA66), Nylon 6/6

Material Flammability Rating :

UL94 V-0

Voltage - UL :

600 V

Connection :

Print

Contact Finish :

Tin

Housing Color :

Grey

Ingress Protection :

-

Voltage - IEC :

1 kV

Torque - Screw :

-

Number of Contacts :

10 Pole

Features :

Retention Latches (Non-Wire Side)

Type :

232-740

Board contact surface :

Tin plated

Connector contact surface :

Tin plated

Current - UL :

15 A

Contact Plating :

Tin

Contact Tail Length :

0.197 (5.00mm)

Wire Gauge or Range - mm² :

-

Diameter :

--

Tip - Type :

Soldering

Series :

H

Number of Levels :

1

Height :

0.030 (0.76mm)
