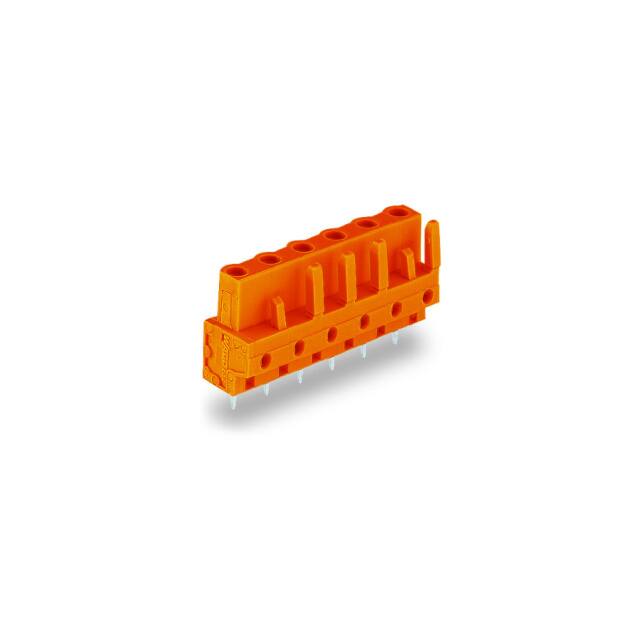

232-771

Manufacturer :

WAGO

Product Category :

Headers, Plugs and Sockets

Connector contact surface :

Tin plated

Series :

232

Number of Positions :

11

ECCN (US) :

EAR99

Mounting Type :

Through Hole

Operating Temperature :

-60°C ~ 85°C

Nominal voltage :

630V

No. of rows :

1

Features :

Retention Latches (Non-Wire Side)

CS :

7.62mm

Voltage - IEC :

1 kV

Inflammability class of insulation material according to with UL94 :

V0

Pins per row :

11

Contact Tail Length :

0.197 (5.00mm)

Wire Strip Length :

-

PPAP :

No

EU RoHS :

Compliant

Contact Material :

COPPER ALLOY

Pitch :

0.300 (7.62mm)

Material of contact surface :

Tin

Pollution degree :

2

RoHS :

Compliant

Approvals :

CB, UR

Contact Plating :

Tin

Contact Mating Finish :

Tin

Length :

11.60mm

Type :

232-771

Board contact surface :

Tin plated

Screw Size :

-

Content :

25pc(s)

Rated current In :

12

Contact Finish :

Tin

Torque - Screw :

-

Positions Per Level :

11

Ingress Protection :

-

Material Flammability Rating :

UL94 V-0

Total number of pins :

11

Termination Style :

Solder

Connector Type :

Socket

Width :

82.78mm

Industrial packaging :

yes

Flammability Rating :

UL94 V-0

Package :

Box

Plug Wire Entry :

-

Voltage - UL :

600 V

Number of Contacts :

11 Pole

Housing Material :

Polyamide (PA66), Nylon 6/6

Type of electric connection :

Soldering connection

Manufacturer part # :

232-771

Color :

Orange

Insulation Height :

0.719 (18.26mm)

Depth :

11.6mm

Housing Color :

Orange

Number of Levels :

1

Current - UL :

15 A

Current - IEC :

12A

Dim :

(L x W x H) 11.60 x 82.78 x 23.25 mm

Temperature :

-60-85 °C

Manufacturer :

Wago

Wire Gauge or Range - mm² :

-

Header Orientation :

Vertical

Automotive :

No

Height :

23.25mm

Connection :

Print

Wire Gauge or Range - AWG :

-

Current :

15 A

Product Status :

Active

Type of fastening :

Solder

Voltage :

300 V

Over voltage category :

III

Rated surge voltage :

6

Number of Rows :

1

Packaging type :

Carton (box)
