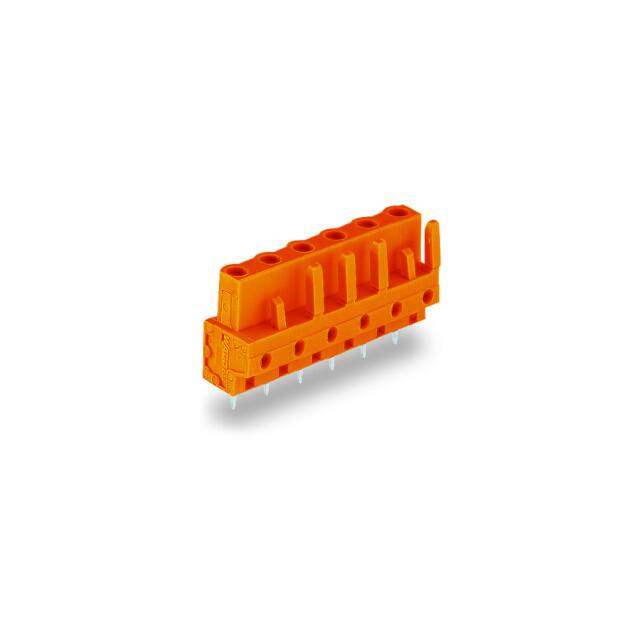

232-772

Manufacturer :

WAGO

Product Category :

Headers, Plugs and Sockets

Connection :

Print

CS :

7.62mm

Height :

23.25mm

No. of rows :

1

Contact Finish :

Tin

Wire Strip Length :

-

Insulation Height :

0.719 (18.26mm)

Temperature :

-60-85 °C

Voltage - IEC :

1 kV

Plug Wire Entry :

-

Operating Temperature :

-60°C ~ 85°C

Manufacturer :

Wago

Connector contact surface :

Tin plated

Industrial packaging :

yes

Width :

90.40mm

Number of Levels :

1

Total number of pins :

12

Wire Gauge or Range - AWG :

-

Housing Material :

Polyamide (PA66), Nylon 6/6

Content :

25pc(s)

Nominal voltage :

630V

Current :

15 A

Contact Material :

COPPER ALLOY

Color :

Orange

Header Orientation :

Vertical

Board contact surface :

Tin plated

Mounting Type :

Through Hole

Features :

Retention Latches (Non-Wire Side)

Ingress Protection :

-

Series :

232

Current - UL :

15 A

Pins per row :

12

Dim :

(L x W x H) 11.60 x 90.40 x 23.25 mm

Product Status :

Active

Length :

11.60mm

Pitch :

0.300 (7.62mm)

Material Flammability Rating :

UL94 V-0

Torque - Screw :

-

Wire Gauge or Range - mm² :

-

Number of Contacts :

12 Pole

Depth :

11.6mm

Approvals :

CB, UR

Manufacturer part # :

232-772

Contact Mating Finish :

Tin

Positions Per Level :

12

Package :

Box

Voltage - UL :

600 V

Number of Positions :

12

Screw Size :

-

Voltage :

300 V

Contact Tail Length :

0.197 (5.00mm)

Type :

232-772

Termination Style :

Solder

Current - IEC :

12A
