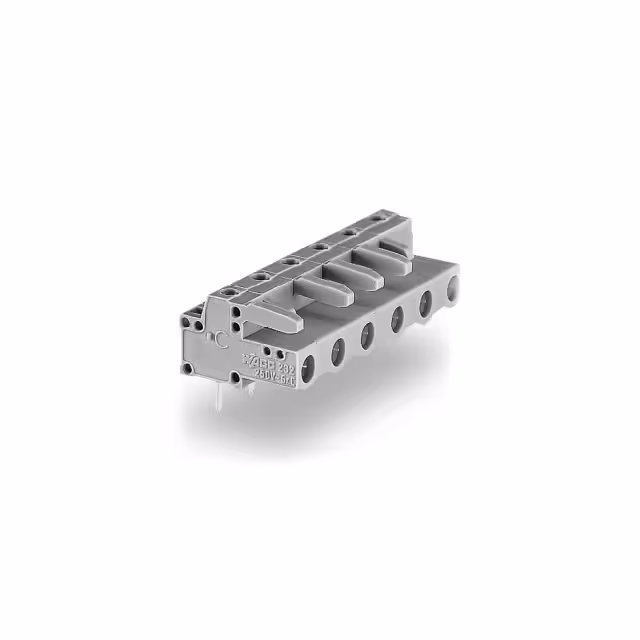

232-841

Manufacturer :

WAGO

Product Category :

Headers, Plugs and Sockets

Temperature :

-60-85 °C

Termination Style :

Solder

Operating Temperature :

-60°C ~ 85°C

Connector Type :

Socket

Material Flammability Rating :

UL94 V-0

Total number of pins :

11

Number of Positions :

11

Wire Gauge or Range - AWG :

-

Contact Finish :

Tin

Number of Rows :

1

EU RoHS :

Compliant

Color :

Grey

Contact Tail Length :

0.197 (5.00mm)

Ingress Protection :

-

Manufacturer part # :

232-841

Plug Wire Entry :

-

Connection :

Print

Pins per row :

11

Dim :

(L x W x H) 16.60 x 81.50 x 18.25 mm

Connector contact surface :

Tin plated

PPAP :

No

Positions Per Level :

11

Wire Gauge or Range - mm² :

-

No. of rows :

1

Width :

81.50mm

Industrial packaging :

yes

Contact Material :

COPPER ALLOY

Voltage - IEC :

630 V

Housing Material :

Polyamide (PA66), Nylon 6/6

RoHS :

Compliant

Length :

16.60mm

Features :

Retention Latches (Non-Wire Side)

Height :

18.25mm

Package :

Box

Torque - Screw :

-

Pitch :

0.295 (7.50mm)

Manufacturer :

Wago

Voltage :

300 V

Board contact surface :

Tin plated

Header Orientation :

90°, Right Angle

Type :

232-841

Mounting Type :

Through Hole

ECCN (US) :

EAR99

Contact Plating :

Tin

Current :

15 A

Product Status :

Active

Nominal voltage :

630V

Screw Size :

-

Automotive :

No

CS :

7.50mm

Voltage - UL :

600 V

Insulation Height :

0.457 (11.60mm)

Wire Strip Length :

-

Series :

232

Content :

25pc(s)

Number of Contacts :

11 Pole

Contact Mating Finish :

Tin

Current - UL :

15 A

Housing Color :

Grey

Current - IEC :

12A

Flammability Rating :

UL94 V-0

Number of Levels :

1
