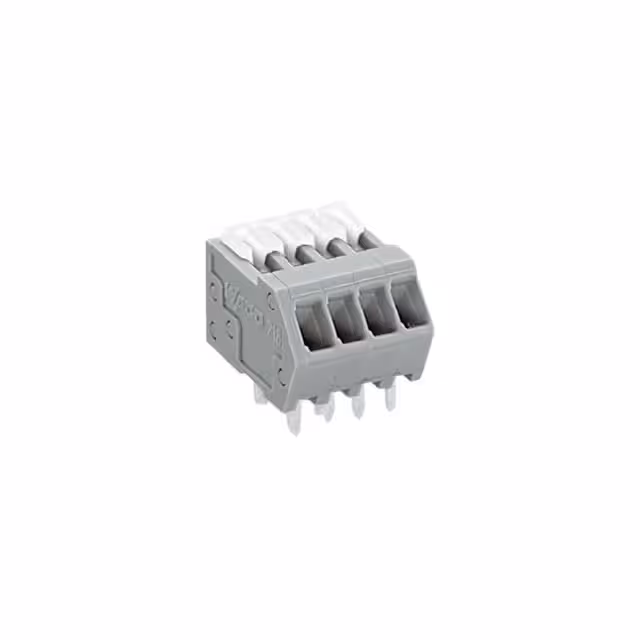

233-148

Manufacturer :

WAGO

Product Category :

Wire to Board

Clamp Material - Plating :

Steel - Nickel Plated

Flammability Rating :

UL94 V-0

Industrial packaging :

yes

Approvals :

UL;CSA

Wire protection :

yes

Voltage :

150 V

Pins per row :

48

Series :

233

Length :

12.10mm

Pitch :

0.098 (2.50mm)

Contact Material :

Copper, Tin

Manufacturer :

Wago

Stripping length (max.) :

6mm

Housing Material :

Polyamide (PA66), Nylon 6/6

AWG (min.) :

28

Mating Orientation :

30° (150°) Angle with Board

Housing Color :

Grey

CS :

2.50mm

Connection :

Spring-loaded terminal,Print

Number of Pins :

48

Features :

+ CAGE CLAMP®

Connection Type :

Spring Clamp

Height :

15.70mm

No. of rows :

1

Pin Length :

4 MilliMeters

AWG max. :

20

Number of Levels :

1

Operating Temperature :

-60°C ~ 105°C

Product Status :

Active

Composition :

Polyamide

Current :

4 A

Wire Termination :

Screwless - Spring Cage, Tension Clamp

Cross section (inflexible) (min.) :

0.08mm²

Number of Poles :

48

Cross section (flexible) (min.) :

0.08mm²

Width :

122.30mm

Mounting Type :

PCB Mount

Temperature Range :

-76 to 221 Degrees F

Package :

Box

Min. stripping length :

10mm

RoHS :

yes

Contact Material - Plating :

Electrolytic Copper - Tin Plated

Number of Rows :

1

Cross section (inflexible) (max.) :

0.50mm²

Manufacturer part # :

233-148

Cross section (flexible) (max.) :

0.50mm²

Screw Material - Plating :

-

Content :

40pc(s)

Torque - Screw :

-

Wire Gauge :

20-28 AWG

Screw Thread :

-

Nominal voltage :

160V

Type :

233-148

Positions Per Level :

48

Color :

Gray
