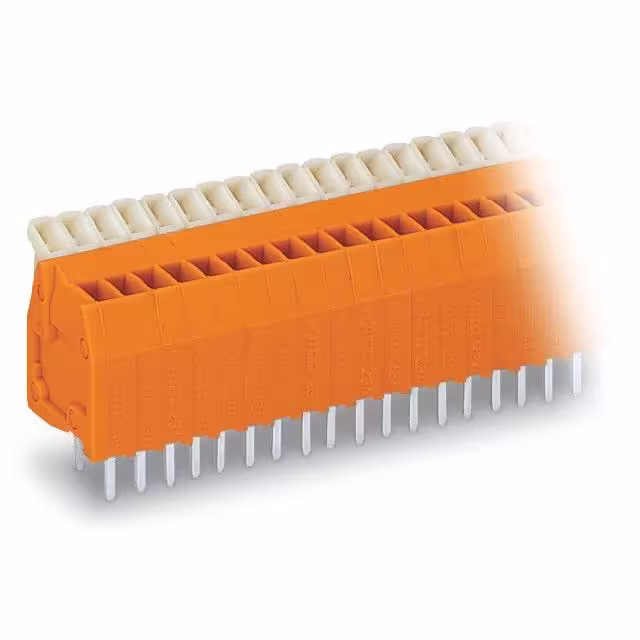

234-512

Manufacturer :

WAGO

Product Category :

Wire to Board

Pitch :

0.100 (2.54mm)

Mating Orientation :

Vertical with Board

Approvals :

UL;CSA

Cross section (flexible) (max.) :

0.50mm²

Length :

14.40mm

Wire protection :

yes

Cross section (flexible) (min.) :

0.08mm²

Connection Type :

Spring Clamp

Content :

140pc(s)

Packaging type :

Other

No. of rows :

1

Positions Per Level :

12

Clamp Material - Plating :

Steel - Nickel Plated

AWG max. :

20

Torque - Screw :

-

Min. stripping length :

6mm

Nominal voltage :

160V

Mounting Type :

PCB Mount

Rated current In :

6

RoHS :

yes

Pollution degree :

2

Package :

Box

Screw Material - Plating :

-

Width :

32.68mm

Manufacturer :

Wago

Over voltage category :

III

Screw Thread :

-

Cross section (inflexible) (min.) :

0.08mm²

Temperature Range :

-76 to 221 Degrees F

Composition :

Polyamide

Type :

234-512

Connectable conductor cross section fine-strand without cable end sleeve :

0.08 - 0.5

Manufacturer part # :

234-512

Wire Gauge :

20-28 AWG

CS :

2.54mm

Connectable conductor cross section solid-core :

0.08 - 0.5

Voltage :

150 V

Product Status :

Active

Pin Length :

4 MilliMeters

Stripping length (max.) :

6mm

Operating Temperature :

-60°C ~ 105°C

Current :

4 A

Rated surge voltage :

2.5

Pins per row :

12

Inflammability class of insulation material according to with UL94 :

V0

Connectable conductor cross section fine-strand with cable end sleeve :

0.25 - 0.25

AWG (min.) :

28

Number of Poles :

12

Industrial packaging :

yes

Features :

+ CAGE CLAMP®

Connection :

Spring-loaded terminal,Print

Wire Termination :

Screwless - Push Button Clamp

Color :

Orange

Housing Material :

Polyamide (PA66), Nylon 6/6

Series :

234

Contact Material - Plating :

Electrolytic Copper - Tin Plated

Connectable conductor cross section multi-wired :

0.08 - 0.5

Number of Levels :

1

Cross section (inflexible) (max.) :

0.50mm²

Type of fastening :

Solder

Height :

18.00mm
