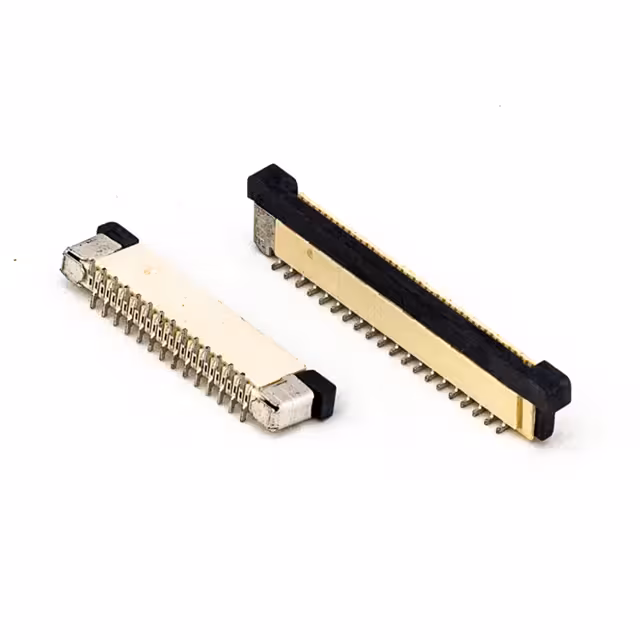

2345-C40TD3AT-S
Or copy the link below:
- Mfr.Part #
- 2345-C40TD3AT-S
- Manufacturer
- Oupiin
- Package / Case
- Datasheet
- Download
- Description
- FFC/FPC SOCKET, 40 PIN, TIN PLAT
- Stock
- 47,559
- In Stock ：
- 47,559
Request A Quote(RFQ)
- * Fullname:
- * Company:
- * E-Mail:
- Phone:
- Comment:
- * Quantity:
- Manufacturer :
- Oupiin
- Product Category :
- FFC, FPC (Flat Flexible) Connector Assemblies
- Features :
- Solder Retention, Zero Insertion Force (ZIF)
- Locking Feature :
- -
- Connector/Contact Type :
- Contacts, Vertical - 1 Sided
- Operating Temperature :
- -25°C ~ 85°C
- Base Product Number :
- C40TD3AT
- Actuator Color :
- -
- Contact Finish :
- Tin
- Housing Color :
- -
- Cable End Type :
- Straight
- FFC, FCB Thickness :
- 0.30mm
- Series :
- 2345-C
- Material Flammability Rating :
- UL94 V-0
- Number of Positions :
- 40
- Package :
- Tape and Reel (TR)
- Product Status :
- Active
- Contact Material :
- Phosphor Bronze
- Mounting Type :
- Surface Mount
- Pitch :
- 0.020" (0.50mm)
- Actuator Material :
- -
- Contact Finish Thickness :
- 100.0µin (2.54µm)
- Voltage Rating :
- 50V
- Termination :
- Solder
- Height Above Board :
- 0.193" (4.90mm)
- Mating Cycles :
- -
- Housing Material :
- Liquid Crystal Polymer (LCP)
- Current Rating (Amps) :
- 0.5A
- Flat Flex Type :
- FFC, FPC
- Datasheets
- 2345-C40TD3AT-S
2345-C Series FFC, FPC Contacts, Vertical - 1 Sided 0.020" (0.50mm) Solder 40 Positions Surface Mount Tin -25°C ~ 85°C 0.5A
2345-C40TD3AT-S Overview
Surface Mount is the type of mounting for the device.The product is a member of the 2345-C Series.It operates at an operating temperature of -25°C ~ 85°C.
2345-C40TD3AT-S Features
2345-C series
2345-C40TD3AT-S Applications
There are a lot of Oupiin
2345-C40TD3AT-S FFC, FPC (Flat Flexible) Connectors applications.
- Embedded systems
- Datacom
- Communication
- Medical technology
- Military Technology
- Measuring & Control Technology
- Instrumentation
- Automotive Electronics
- Telecommunications
- Data Technology
