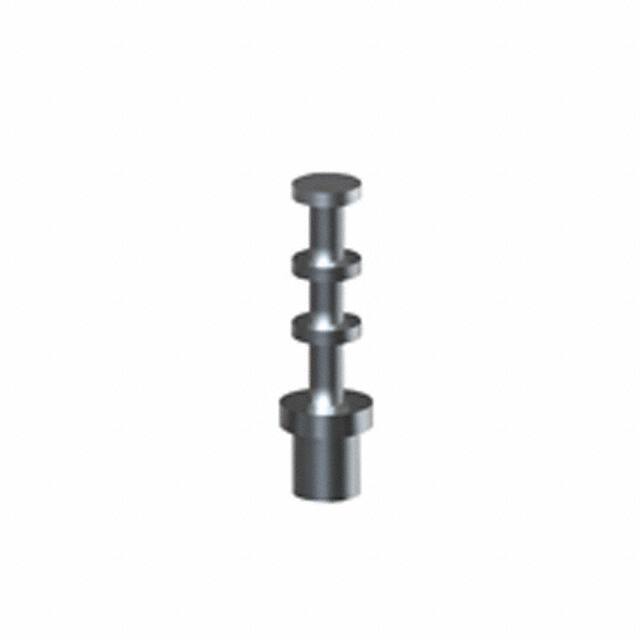

2355-1-00-01-00-00-07-0
Or copy the link below:
- Mfr.Part #
- 2355-1-00-01-00-00-07-0
- Manufacturer
- Mill-Max
- Package / Case
- Datasheet
- Download
- Description
- TERM TURRET SINGLE L=4.85MM
- Stock
- 6,526
- In Stock ：
- 6,526
Request A Quote(RFQ)
- * Fullname:
- * Company:
- * E-Mail:
- Phone:
- Comment:
- * Quantity:
- Manufacturer :
- Mill-Max
- Product Category :
- Turret Connectors
- Staking Side ID :
- 0.046 (1.17mm)
- Length - Overall :
- 0.244 6.20mm
- ECCN Code :
- EAR99
- Contact Material :
- Brass Alloy
- Series :
- 2355
- Contact Finish :
- Tin-Lead
- Staking Side OD :
- 0.070 (1.78mm)
- Length - Below Flange :
- 0.053 1.35mm
- RoHS Status :
- Non-RoHS Compliant
- Mounting Type :
- Through Hole
- Board Thickness :
- 0.031 0.79mm
- Diameter - Turret Head :
- 0.050 (1.27mm)
- Mounting Hole Diameter :
- 0.073 (1.85mm)
- Terminal Type :
- Single End
- Contact Plating :
- Lead, Tin
- Length :
- 6.1976mm
- Terminal and Terminal Block Type :
- PCB TERMINAL
- Contact Finish Thickness :
- 200.0μin 5.08μm
- Factory Lead Time :
- 5 Weeks
- Flange Diameter :
- 0.094 (2.39mm)
- Number of Turrets :
- Double
- Published :
- 2012
- Length - Above Board :
- 0.191 4.85mm
- Insulation :
- Non-Insulated
- HTS Code :
- 8536.90.40.00
- Packaging :
- Bulk
- Termination :
- Swage
- Pbfree Code :
- No
- Hole Diameter :
- 1.8542 mm
- Moisture Sensitivity Level (MSL) :
- 1 (Unlimited)
- Datasheets
- 2355-1-00-01-00-00-07-0
