236-101

Manufacturer :

WAGO

Product Category :

Wire to Board

Contact Material - Plating :

Electrolytic Copper - Tin Plated

Screw Thread :

-

Content :

600pc(s)

Cross section (flexible) (max.) :

2.50mm²

Rated surge voltage :

4

Mating Orientation :

45° (135°) Angle with Board

Connection :

Spring-loaded terminal,Print

Voltage :

300 V

Cross section (inflexible) (min.) :

0.08mm²

Width :

17.00mm

Stripping length (max.) :

6mm

Manufacturer :

Wago

Manufacturer part # :

236-101

Height :

14.00mm

Cross section (inflexible) (max.) :

2.50mm²

Cross section (flexible) (min.) :

0.08mm²

Pins per row :

1

Number of Levels :

1

Connection Type :

Spring Clamp

CS :

5mm,5.08mm

Current :

15 A

AWG (min.) :

28

Wire Gauge :

12-28 AWG

Enclosure material :

Polyamide

Nominal current - rounded value :

24A

Series :

236

Pollution degree :

2

Temperature Range :

-76 to 221 Degrees F

Connectable conductor cross section solid-core :

0.08 - 2.5

Inflammability class of insulation material according to with UL94 :

V0

Approvals :

CSA;UL

Number of Poles :

1

Type of fastening :

Solder

Connectable conductor cross section fine-strand with cable end sleeve :

0.25 - 1.5

Min. stripping length :

5mm

Torque - Screw :

-

Package :

Box

Nominal current :

24A

Packaging type :

Other

Type :

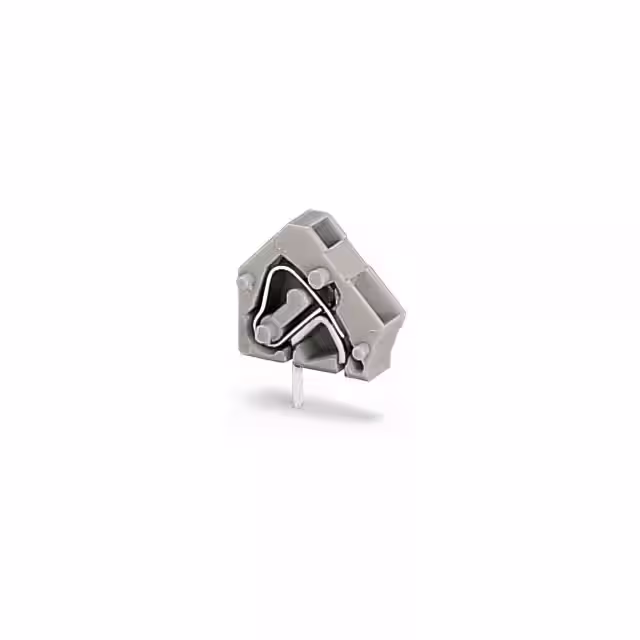

PCB terminal block 45° 1P 24A RM5/5,08 grey

Operating Temperature :

-60°C ~ 105°C

Connectable conductor cross section fine-strand without cable end sleeve :

0.08 - 2.5

Pin Length :

4 MilliMeters

Connectable conductor cross section multi-wired :

0.08 - 2.5

No. of rows :

1

RoHS :

yes

Nominal voltage :

320V

Features :

+ CAGE CLAMP®

Rated current In :

24

Length :

7.20mm

Over voltage category :

III

Clamp Material - Plating :

Steel - Nickel Plated

Composition :

Polyamide

Actuation direction :

At an angle (to the PCB)

Mounting Type :

PCB Mount

Positions Per Level :

1

Pitch :

-

Housing Material :

Polyamide (PA66), Nylon 6/6

Color :

Gray

AWG max. :

12

Product Status :

Active

Screw Material - Plating :

-

Wire protection :

yes

Industrial packaging :

yes

Wire Termination :

Screwless - Spring Cage, Tension Clamp
