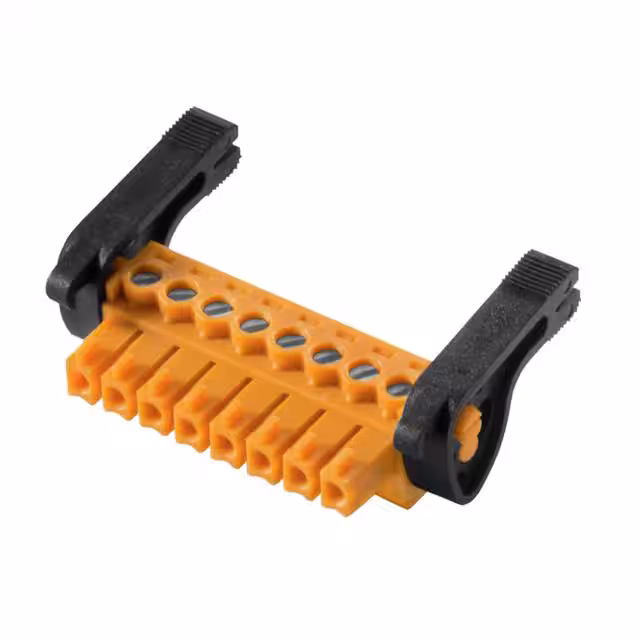

2442580000

Manufacturer :

Weidmuller

Product Category :

Headers, Plugs and Sockets

Manufacturer part # :

2442580000

AWG max. :

16

Min. temperature :

-50°C

Pins per row :

16

Type :

BCZ 3.81/16/180LR SN BK BX

Stripping length (max.) :

7mm

Product Type :

Pluggable Terminal Blocks

Connectable conductor cross section solid-core :

0.2 - 1.5

RoHS-compliant :

yes

Connectable conductor cross section fine-strand without cable end sleeve :

0.2 - 1.5

Subcategory :

Terminal Blocks

Pollution degree :

2

Case material :

PA GF

No. of rows :

1

RoHS :

Non-Compliant

Nominal voltage :

320V

Rated current In :

17

Max. temperature :

+120°C

Product Category :

Pluggable Terminal Blocks

Over voltage category :

III

Features :

encodable

CS :

3.81mm

Degree of protection (IP), mounted :

IP20

Min. cross section :

0.20mm²

Series :

BC/SC

Nominal current - rounded value :

17.5A

Manufacturer :

Weidmuller

Material housing :

Plastic

AWG (min.) :

28

Type of electric connection :

Screw connection

Connectable conductor cross section fine-strand with cable end sleeve :

0.2 - 1.5

Lifecycle Status :

Production (Last Updated: 1 week ago)

Nominal current :

17.50A

Rated surge voltage :

2.5

Brand :

Weidmuller

Connection :

Pull spring

Content :

50pc(s)

Inflammability class of insulation material according to with UL94 :

V0

Material of contact surface :

Tin

max. cross section :

1.50mm²

Industrial packaging :

yes

Material contact :

Copper

Total number of pins :

16
