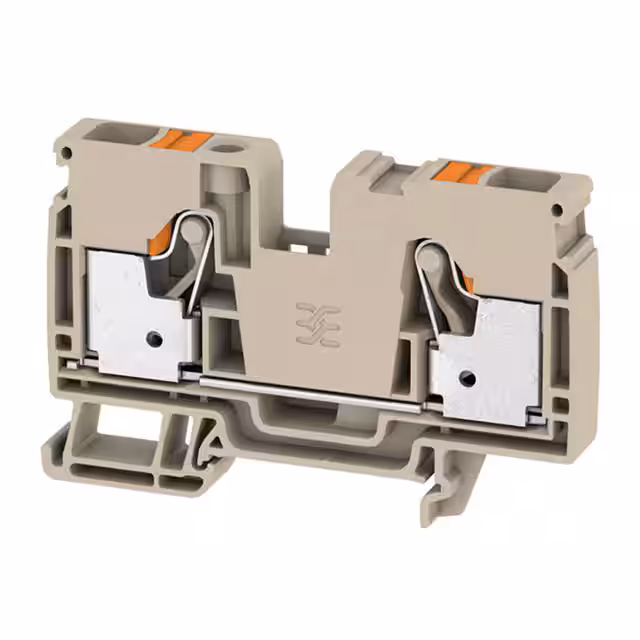

2490360000

Manufacturer :

Weidmuller

Product Category :

Din Rail, Channel

Content :

25pc(s)

Cross section (flexible) (max.) :

10mm²

Manufacturer part # :

2490360000

Connectable conductor cross section solid-core :

0.5 - 10

Connectable conductor cross section multi-wired :

0.5 - 10

Width :

10 mm

No. of rows :

1

Connection :

Pull spring

Inflammability class of insulation material according to with UL94 :

V0

RoHS :

Details

Housing Material :

Thermoplastic (TP)

Current Rating :

57 A

Connectable conductor cross section fine-strand with cable end sleeve :

0.5 - 10

Stripping length (max.) :

18mm

Voltage Rating :

1 kV

Height :

80.5 mm

Flammability Rating :

UL 94 V-0

Color :

Beige

Cross section (inflexible) (max.) :

10mm²

RoHS-compliant :

yes

Mounting Style :

DIN Rail

Clamp width :

10mm

Nominal voltage :

1000V

Depth :

51.5

Cross section (inflexible) (min.) :

0.5mm²

AWG max. :

6

Minimum Operating Temperature :

- 60 C

Rated current In :

57

Pins per row :

2

Maximum Operating Temperature :

+ 130 C

Cross section (flexible) (min.) :

0.5mm²

Connectable conductor cross section fine-strand without cable end sleeve :

0.5 - 10

Number of Positions :

2 Position

Industrial packaging :

yes

Packaging :

Bulk

Series :

A2C

AWG (min.) :

18

Length :

51.5 mm

Type :

Feed Through Terminal Block

Connection Method :

Push-In
