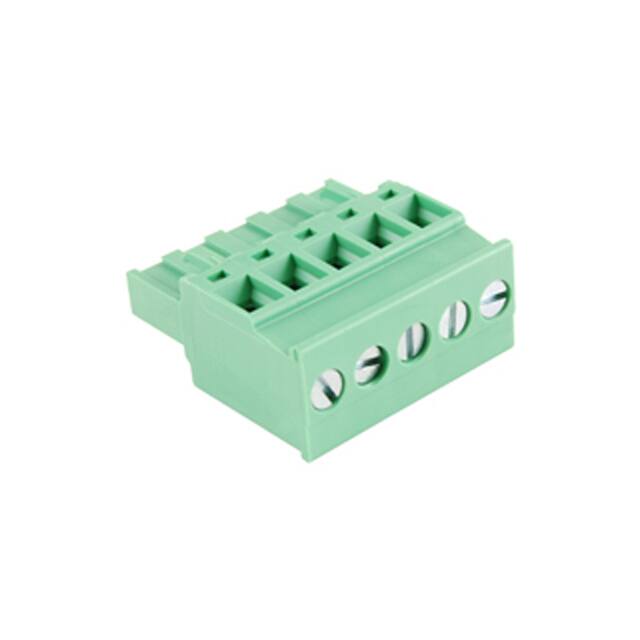

25-E1100-05

Manufacturer :

NTE Electronics, Inc.

Product Category :

Headers, Plugs and Sockets

Current - UL :

15 A

Contact Tail Length :

-

Wire Strip Length :

7-8mm

Housing Material :

-

Type :

Plug, Female Sockets

Product Status :

Active

Insulation Height :

1.026 (26.05mm)

Voltage Rating :

300V

Contact Mating Finish :

-

Current - IEC :

-

Contact Material :

-

Package :

Bag

Material Flammability Rating :

-

Termination Style :

Screw

Screw Size :

M2.5

Plug Wire Entry :

90°

Connection Type :

Screw Clamp

Features :

Retention Latches (Wire Side)

Barrier Type :

Tubular Screw Clamp

Package Quantity :

1

Ingress Protection :

-

RoHS :

No

Voltage - UL :

300 V

Manufacturer :

NTE Electronics

Positions Per Level :

5

Series :

25-E1100

Operating Temperature :

-

Header Orientation :

-

Number of Poles :

5

Mounting Type :

Free Hanging (In-Line)

Pitch :

5.08 mm

Wire Gauge or Range - AWG :

12-30 AWG

Number of Levels :

1

Color :

Green

Torque - Screw :

0.51 Nm (4.5 Lb-In)

Approvals :

CSA, UR

Wire Gauge or Range - mm² :

-

Number of Positions :

5
