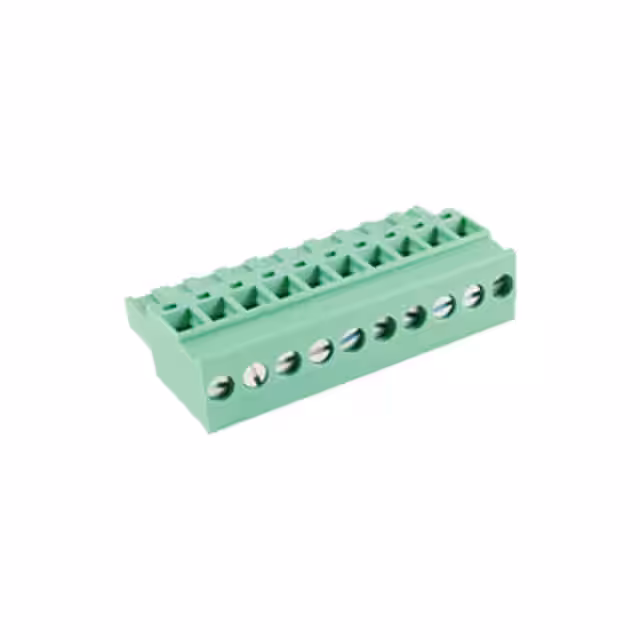

25-E1100-10

Manufacturer :

NTE Electronics, Inc.

Product Category :

Headers, Plugs and Sockets

Plug Wire Entry :

90°

Contact Mating Finish :

-

Pitch :

5.08 mm

Number of Poles :

10

Wire Strip Length :

7-8mm

Torque - Screw :

0.51 Nm (4.5 Lb-In)

Number of Levels :

1

Package Quantity :

1

Contact Tail Length :

-

Connection Type :

Screw Clamp

Termination Style :

Screw

Screw Size :

M2.5

Features :

Retention Latches (Wire Side)

Series :

25-E1100

Insulation Height :

1.026 (26.05mm)

Header Orientation :

-

Positions Per Level :

10

Wire Gauge or Range - AWG :

12-30 AWG

Color :

Green

Package :

Bag

Wire Gauge or Range - mm² :

-

Housing Material :

-

Approvals :

CSA, UR

Mounting Type :

Free Hanging (In-Line)

Ingress Protection :

-

Operating Temperature :

-

Current - UL :

15 A

Contact Material :

-

Current - IEC :

-

Material Flammability Rating :

-

Voltage Rating :

300V

Barrier Type :

Tubular Screw Clamp

Product Status :

Active

RoHS :

No

Type :

Board to Board

Voltage - UL :

300 V

Number of Positions :

10

Manufacturer :

NTE Electronics
