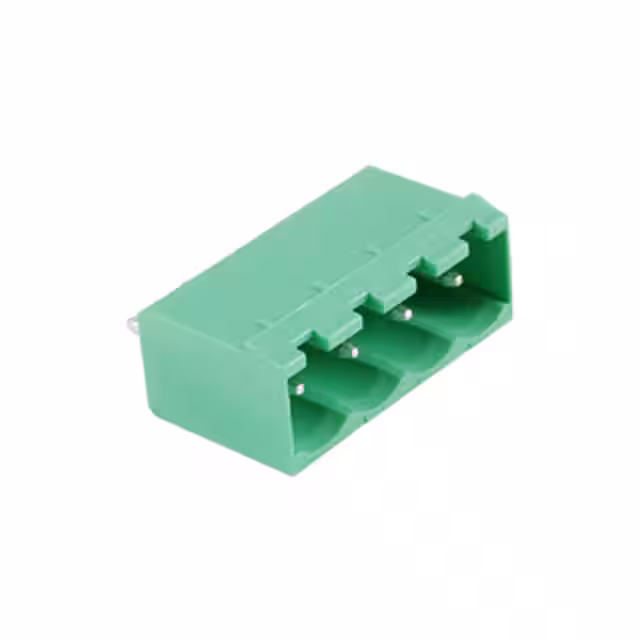

25-E1300-04

Manufacturer :

NTE Electronics, Inc.

Product Category :

Headers, Plugs and Sockets

Positions Per Level :

4

Manufacturer :

NTE Electronics

Torque - Screw :

-

Operating Temperature :

-

Screw Size :

-

Features :

-

Number of Levels :

1

Package :

Bag

Connection Type :

Screw Clamp

Contact Tail Length :

0.157 (4.00mm)

Wire Gauge or Range - mm² :

-

Mounting Type :

PCB Mount

Ingress Protection :

-

Voltage - UL :

300 V

Type :

Header, Male Pins, Shrouded (4 Side)

Pin Length :

4 MilliMeters

Approvals :

CSA;cURus

Termination Style :

Solder

Number of Poles :

4

Current - UL :

15 A

Series :

25-E1300

Wire Strip Length :

-

Material Flammability Rating :

-

Product Status :

Active

Voltage Rating :

300V

Color :

Green

Insulation Height :

0.472 (12.00mm)

Contact Mating Finish :

-

RoHS :

No

Pitch :

5.08 mm

Housing Material :

-

Header Orientation :

Vertical

Contact Material :

-

Wire Gauge or Range - AWG :

-

Plug Wire Entry :

-

Number of Positions :

4

Current - IEC :

-

Package Quantity :

1
