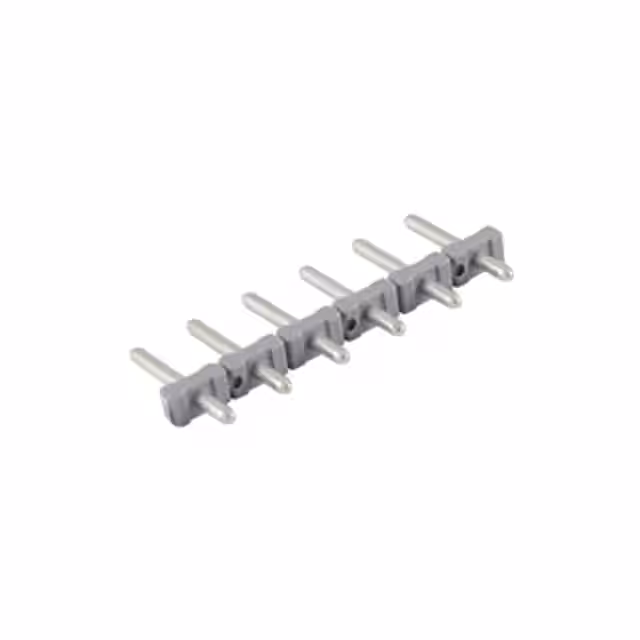

25-E1500-06

Manufacturer :

NTE Electronics, Inc.

Product Category :

Headers, Plugs and Sockets

Contact Tail Length :

0.141 (3.58mm)

Terminal Screw Material :

Steel

Bottom Termination :

PC Pin

Voltage Rating :

300V

Positions Per Level :

6

Pitch :

0.375 (9.53mm)

Barrier Type :

3 Wall (Tri)

Type :

Header, Male Pins, Unshrouded

Packaging :

Bulk

Number of Levels :

1

Torque - Screw :

-

Wire Gauge :

12-22 AWG

Package :

Bag

Approvals :

UR

Contact Material :

-

Wire Strip Length :

-

Screw Size :

-

Header Orientation :

Vertical

Number of Positions :

6

Wire Gauge or Range - mm² :

-

Contact Mating Finish :

-

Current - UL :

7 A

Top Termination :

Screws with Captive Plate

Terminal Block Type :

Barrier Block

Features :

--

Package Quantity :

1

Color :

Black

Current Rating :

30A

Ingress Protection :

-

Series :

Magnum® CB2000

Terminal Screw Finish :

Zinc

Mounting Type :

Through Hole

Manufacturer :

NTE Electronics

Current - IEC :

-

RoHS :

No

Material - Insulation :

Thermoplastic

Voltage - UL :

300 V

Number of Rows :

1

Operating Temperature :

-40°C ~ 105°C

Housing Material :

-

Insulation Height :

0.079 (2.00mm)

Product Status :

Active

Number of Circuits :

6

Number of Poles :

6

Number of Wire Entries :

6

Plug Wire Entry :

-

Wire Gauge or Range - AWG :

-

Termination Style :

Solder

Material Flammability Rating :

UL94 V-0
