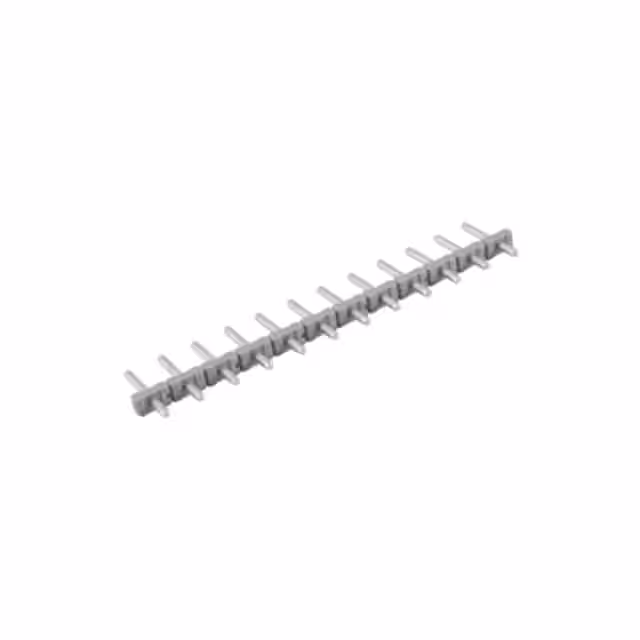

25-E1500-12

Manufacturer :

NTE Electronics, Inc.

Product Category :

Headers, Plugs and Sockets

Housing Material :

-

Header Orientation :

Vertical

Product Status :

Active

Current - UL :

7 A

Current - IEC :

-

Packaging :

Tape and Reel

Number of Positions :

12

Screw Size :

-

Torque - Screw :

-

Resistance :

374 Ω

Military Standard :

MIL-PRF-55182

Pitch :

0.197 (5.00mm)

Wire Gauge or Range - mm² :

-

Package :

Bag

Radiation Hardening :

No

Manufacturer :

NTE Electronics

Voltage - UL :

300 V

Lead Free :

Contains Lead

Min Operating Temperature :

-65 °C

Diameter :

2.39 mm

Length :

7.62 mm

Mount :

Through Hole

Temperature Coefficient :

50 ppm/°C

Tolerance :

0.1 %

Series :

25-E1500

Max Operating Temperature :

175 °C

Contact Plating :

Lead, Tin

Width :

2.39 mm

Number of Poles :

12

Power Rating :

125 mW

Ingress Protection :

-

Features :

-

Type :

Header, Male Pins, Unshrouded

RoHS :

Non-Compliant

Number of Levels :

1

Wire Gauge or Range - AWG :

-

Positions Per Level :

12

Termination Style :

Solder

Mounting Type :

Through Hole

Wire Strip Length :

-

Contact Mating Finish :

-

Plug Wire Entry :

-

Operating Temperature :

-

Contact Tail Length :

0.141 (3.58mm)

Insulation Height :

0.079 (2.00mm)

Composition :

Metal Film

Color :

Gray

Material Flammability Rating :

-

Contact Material :

-
